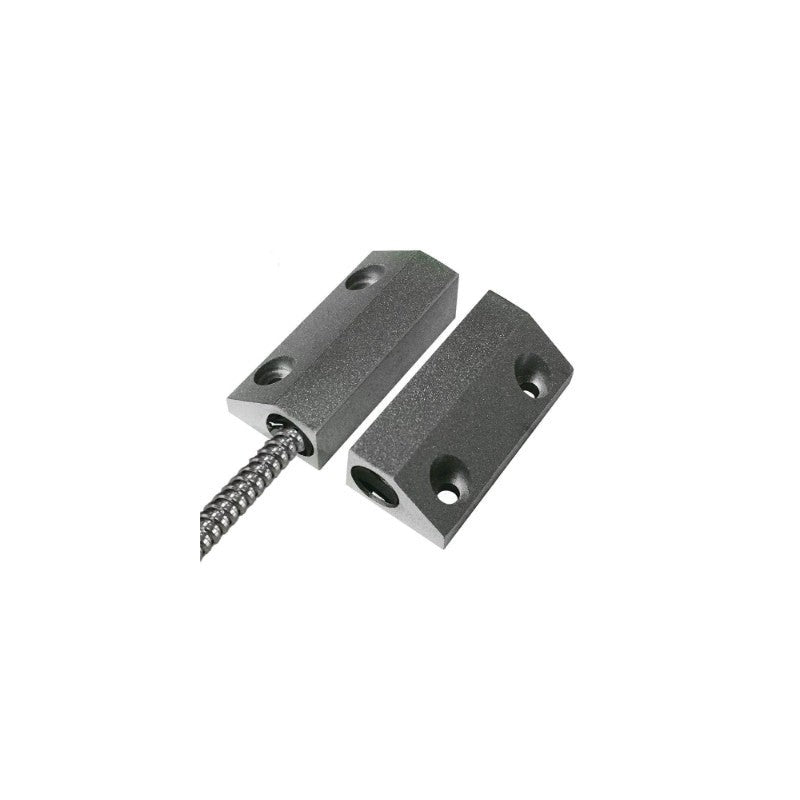

Hikvision X2 Reed, Mini Heavy Duty Metal Reed Switch, Surface Mount, 30mm Gap

The Hikvision X2 Reed, Mini Heavy Duty Metal Reed Switch, Surface Mount, 30mm Gap is a compact detection device designed for monitoring the open or closed state of doors and windows. Constructed from zinc alloy, this surface-mount unit is engineered for robust applications such as fire doors and roof hatches, featuring a 30mm gap tolerance and a 480mm armoured cable connection.

Key Features

• Mini heavy-duty metal reed switch with a 30mm gap for surface mounting
• Constructed from durable zinc alloy with a silver finish
• Supplied with 480mm of armoured cable for secure connections
• NC (Normally Closed) contact type with a maximum switching current of 0.5A
• Maximum switching voltage of 100V DC/AC and operating load of 10W
• Operates within a temperature range of -20 to 80°C
• Working life exceeding 100,000 cycles
• Approved by CCC, CE, FCC, and RoHS standards
