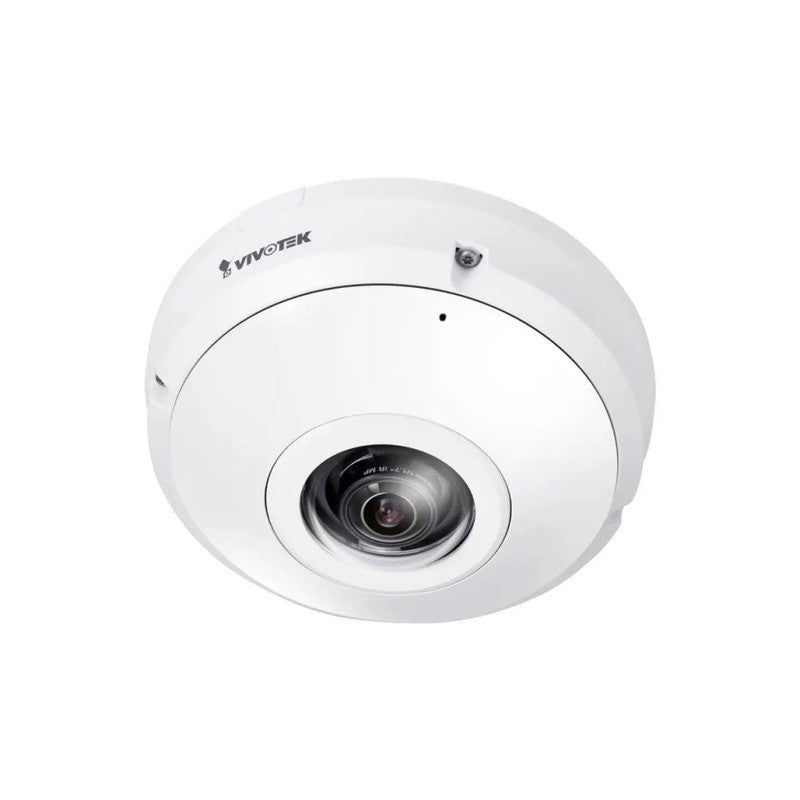

Vivotek Fe9191-h-v2 Indoor 360 Fisheye, 12mp, F1.22mm Lens, Wdr Pro, Built-in Mic, Poe, Smart Vca

VIVOTEK’s FE9191-H-v2 is a fisheye network camera featuring a detailed 12-Megapixel resolution sensor for superb image quality. A small camera with big functionality, VIVOTEK’s FE9191-H-v2 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. Equipped with a fisheye lens for 360° surround view with no blind spots, the low profile design enables very discrete surveillance of indoor spaces, such as retail boutiques, hotel lobbies, banks, and more. Furthermore, the FE9191-H-v2 comes fully equipped with VIVOTEK’s Smart VCA (Video Content Analysis). With AI-based deep-learning and Smart Motion Detection, Smart VCA will enable users to quickly and accurately detect event triggers such as intrusion detection and missing object alerts. This suite of analytic functions is only available on our SUPREME line of products. Specifications System Information CPU Multimedia SoC (System-on-Chip) Flash 8 GB RAM 2 GB Camera Features Image Sensor 1/2.3″ Progressive CMOS in 4056×3040 Max. Resolution 2944×2944 Lens Type Fixed-focal Focal Length f = 1.22 mm Aperture F2.0 Iris Type Fixed iris Field of View 180° (Horizontal), 180° (Vertical), 180° (Diagonal) Shutter Time 1/5 sec. to 1/32,000 sec. WDR Technology WDR Pro Day/Night Yes Removable IR-cut Filter Yes Minimum Illumination 0.1 lux @ F2.0 (Color), <0.005 lux @ F2.0 (B/W) Pan/Tilt/Zoom Functionalities ePTZ: 12x digital zoom (12x on IE plug-in) Storage Seamless Recording to MicroSD/SDHC/SDXC card and network-attached storage (NAS) Built-in Installation Aids Pixel calculator Video Video Compression H.265, H.264, MJPEG Maximum Frame Rate 30 fps @ 2944×2944 (WDR off), 20 fps @ 2944×2944 (WDR on) Maximum Streams 3 video streams (Up to 8 configurable profiles) S/N Ratio 56.9 dB Dynamic Range 120 dB Video Streaming Adjustable resolution, quality and constant bit rate control, Smart Stream III Image Settings Video title and time stamp overlay, video orientation (flip, mirror), day/night settings, anti-overexposure, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, BLC, exposure control, AE speed adjustment, WDR, Privacy mask, Scheduled profile settings, Pixel calculator Display Mode Client Dewarping : Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions; Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R One Fisheye Three Regions Local Dewarping : Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions; Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions Audio Audio Capability Two-way Audio (full duplex) Audio Compression G.711, G.726, MPEG-2 AAC-LC Audio Interface Built-in microphone Effective Range 5 meters Network Users Live viewing for up to 10 clients Security Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP Interface 10 Base-T/100 Base-TX Ethernet (RJ-45) ONVIF Profile G, S, T supported, specification available at www.onvif.org AI Analytics Compute Capability SoC with built-in hardware deep learning accelerator Vision Object Analytics Object Detection: people, vehicle (4-wheeled, 2-wheeled); Attribute Extraction: people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction Application Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection) Application available with license Solution Integration Applications: Stratocast, Trend Micro IoT Security (3-year free trial) Alarm and Event Event Trigger Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot Event Action Event notification via audio clip*, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card, Camera link General Connectors RJ-45 cable connector for 10/100 Mbps PoE network connection; Audio input*, Audio output*, DC 12V power input*, Digital input*, Digital output* (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) LED Indicator System power and status indicator Power Input IEEE 802.3af PoE Class 0 Power Consumption Max. 9 W Dimensions ø 150 x 68.2 mm Weight 701 g Certifications EMC: CE (EN 55032 Class B, EN 55035), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B), UKCA (BS EN 55032:2015+A11: 2020, BS EN 55035:2017+A11:2020, BS EN IEC 62368-1:2020+A11:2020), ICES-003 Issue 7, BSMI (EMC: CNS 13438, Safety: CNS 14336-1); Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1); *IK10 (Metal Housing)
