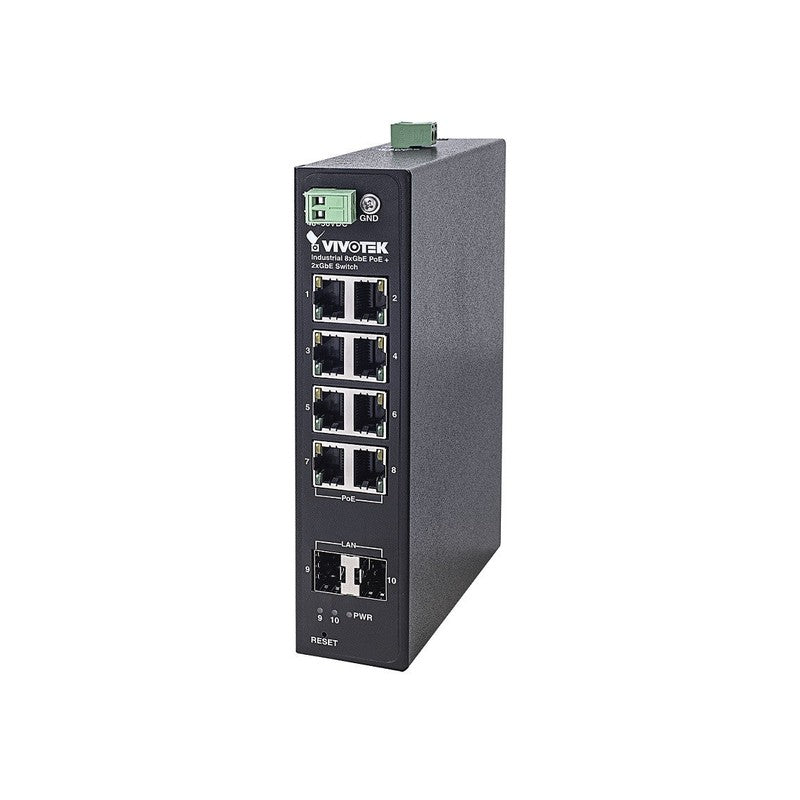

Vivotek Aw-iht-1000, Industrial 8xge POE + 2xge Sfp Switch
SKU: AWIHT1000
$430.35
Technical Specifications
| Category | Specification |
|---|---|
| Model | |
| Model | AW-IHT-1000 |
| Networking Specifications | |
| Gigabit Ethernet RJ45 PoE Port | 8 |
| Gigabit SFP Port | 2 |
| Ethernet Performance | |
| Switching Bandwidth | 20 Gbps |
| MAC Address | 4 K |
| Buffer Memory | 128 KB |
| Forwarding Capacity | 14.88 Mbps |
| Jumbo Frame | 9,216 Bytes |
| Transmission Method | Store and Forward |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
| Standards | |
| IEEE 802.3 10-BASE-T (Ethernet) | Supported |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) | Supported |
| IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) | Supported |
| IEEE 802.3z 1000-BASE-X (Gigabit Ethernet) | Supported |
| IEEE 802.3x Flow Control (Full-Duplex Flow Control) | Supported |
| IEEE 802.3af Power over Ethernet | Supported |
| IEEE 802.3at Power over Ethernet Plus | Supported |
| Power Specifications | |
| Power Input Voltage | PW1: 48 ~ 56VDC PW2: 48 ~ 56VDC |
| Redundant Power Backup | Max. PoE Output Power /Per PoE Port 54VDC, Max. 30W |
| Total PoE Power Budget | 240W |
| IEEE 802.3af/at | Supported |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE PD Auto Detection | Supported |
| Surge Protection/Per PoE Port | 12 KV |
| General | |
| Operating Temperature | -40°C ~ 75°C (-40°F ~ 167°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 5% ~ 95% non-condensing |
| Dimensions | 172 (L) x 132 (W) x 39 (H) mm |
| Weight | 0.8 kg |
| Certifications | |
| EMS | EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000-4-8 PFMF |
| EMI | FCC Part 15 Class A |
| Safety | CE, LVD, VCCI |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
