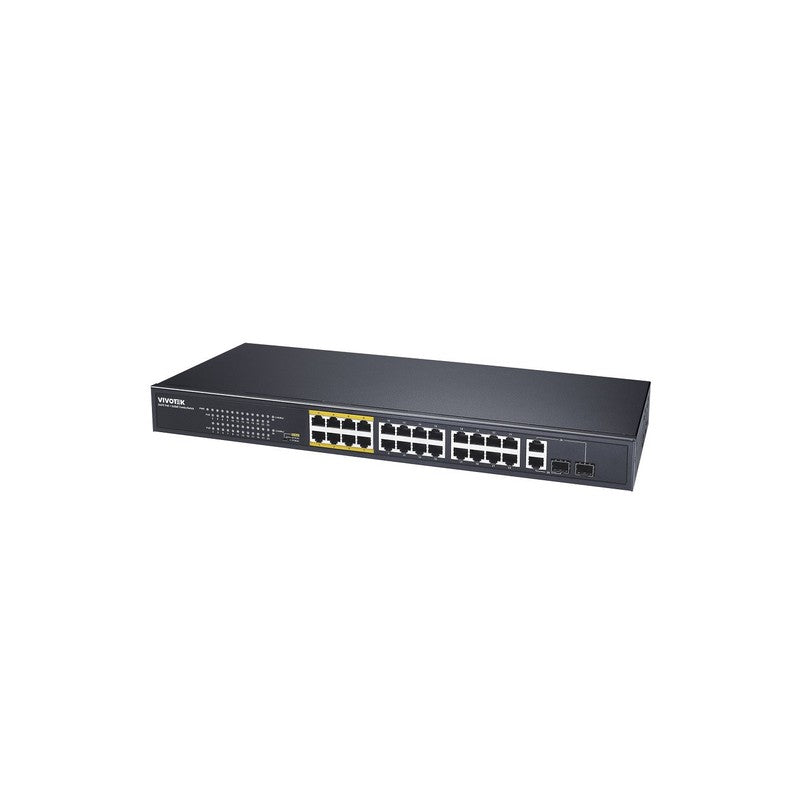

Vivotek Aw-fgt-260f-380 Aun, 24xfe POE + 2xgbe Combo Unmanaged Switch
SKU: AWFGT260F380AUN
$741.57
Technical Specifications
| Category | Details |
|---|---|
| Model | AW-FGT-260F-380 |
| Summary of Key Features | Combination of 24xFE PoE + 2xGbE |
| Network Specifications | |
| PoE RJ45 Ports (10/100Mbps) | 24 |
| Combo RJ45/SFP Gigabit Ports | 2 |
| PoE Mode EX (250M @ 10Mbps) | 8 |
| VLAN Mode | Supported |
| Ethernet Performance | |
| Switching Capacity | 8.8 Gbps |
| MAC Table | 16 K |
| Jumbo Frame | 1536 bytes |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
| Power Specifications | |
| Input Power Voltage | 100 VAC ~ 240 VAC 280 VAC 4 hours, 300 VAC 1 min |
| Max. PoE Output Power per Port | 54 VDC |
| PoE Output IEEE 802.3af (Max. 15.4 W) | Supported |
| PoE+ Output IEEE 802.3at (Max. 30 W) | Supported |
| Total PoE Power | 380 W |
| Pin Assignment for Power | 1/2(+), 3/6(-) |
| Automatic PD PoE Detection | Supported |
| PoE Surge Protection | 6 KV |
| AC Surge Protection | 4 KV |
| General | |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 10% ~ 90% Non-condensing |
| MTBF | CE, UKCA, FCC, VCCI, C-Tick Class A |
| Dimensions | 440 (D) x 207 (W) x 44 (H) mm |
| Weight | 3.25 kg |
| Warranty | 24 months |
| Certifications | |
| EMC | CE, FCC, VCCI, LVD |
| Safety | EN62368-1, IEC62368-1 |
