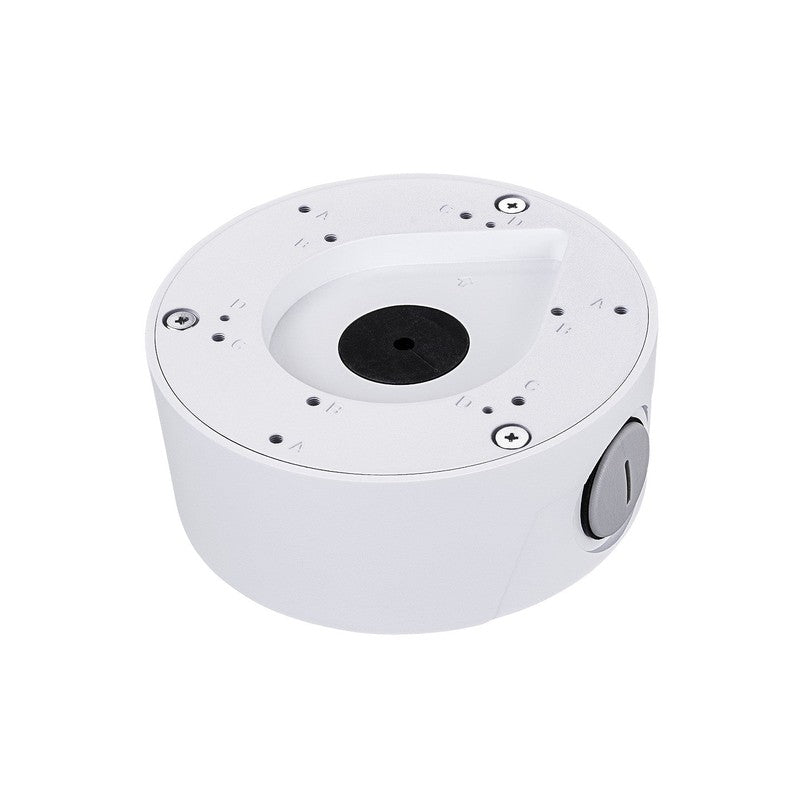

Vivotek Am-71b-v02 Waterproof Conduit Box
SKU: AM71BV02
$114.45
Supported Models Camera: V02: FD9360-H, FD9368-HTV, FD9380-H, FD9388-HTV, FD9389-(E)HV, FD9389-(E)HMV, FD9389-(E)HTV, IT9388-HT, IT9389-H-v2 Adapting Ring: AM-522
Technical Specifications
| Product Information | |
|---|---|
| Model | AM-71B |
| P/N | VIO100220400 (V01), VIO100220401 (V02) |
| Material | Aluminum Alloy |
| Color | White |
| Pipe Thread | PF 3/4” |
| Casing | IP66 (with supported cameras), IP67 (with FD9389 series) |
| Dimensions | Ø 138 x 55 mm |
| Weight | 736 g |
| Box Dimension | 217 (L) x 174 (W) x 94 (H) mm (1pc) |
| Box Weight | 930 g |
| Carton Dimension | 490 (L) x 367 (W) x 252 (H) mm (10pcs) |
| Carton Weight | 10,330 g |
| Note | This product is recommended for general outdoor environments, excluding coastal areas with high salinity. |
