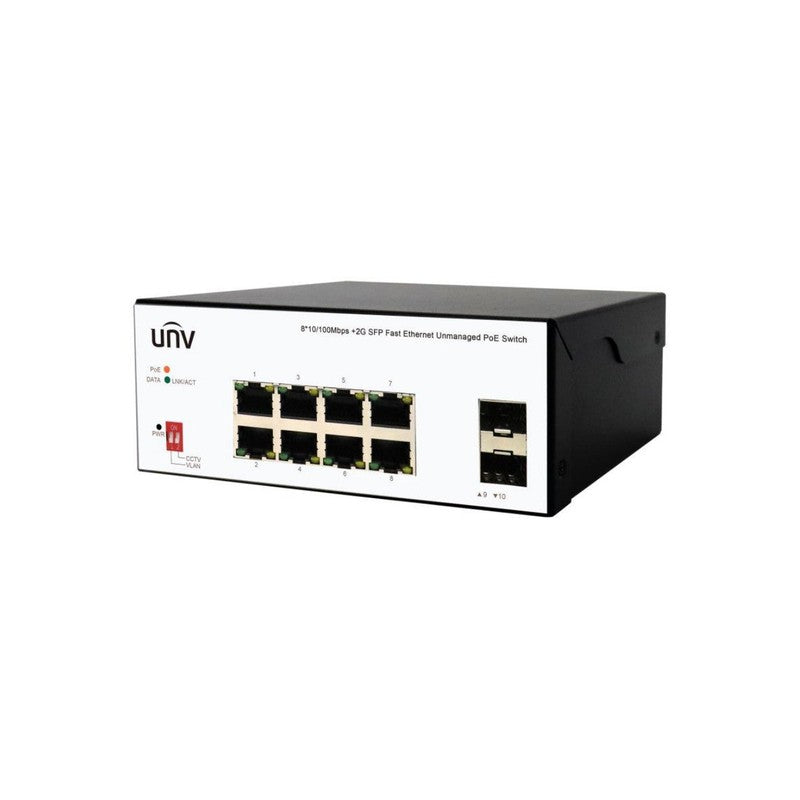

Uniview Harsh 8port Switch 120w POE Total Capacity 8x Poe+ Plus 2x 1g Sfp/ Fibre Port L2 Unmanaged Black 48-57vdc Cctv/ Vlan Option
SKU: ISW20008T2GPPOEIN
$232.70
The Uniview Harsh 8port Switch 120w POE Total Capacity 8x Poe+ Plus 2x 1g Sfp/ Fibre Port L2 Unmanaged Black 48-57vdc Cctv/ Vlan Option is a ruggedized network device engineered for demanding surveillance environments. This L2 unmanaged switch provides a 120W total PoE+ budget across eight ports, supported by two 1G SFP fibre uplinks for reliable long-distance connectivity.
Key Features
- 8x PoE+ ports with a total power budget of 120W
- 2x 1G SFP fibre ports for uplink connectivity
- 5.6Gbps switching capacity and 4.17Mbps forwarding rate
- Operating temperature range of -20°C to +60°C for harsh environments
- Black metal housing with dimensions of 58H x 109W x 145D mm
- 48-57VDC power input with extended PoE power supply included
- L2 unmanaged design with CCTV and VLAN options
Technical Specifications
Technical Specifications
| Brand | UNIVIEW |
| Total Port No | 8PORT |
| Product Type | SWITCH |
| Poe Type | POE , POE+ |
| Sfp/ Fibre Port | 2x 1G |
| Poe Total Capacity | 120W |
| Switching Capacity | 5.6Gbps |
| Management | L2 UNMANAGED |
| Operating Temperature (°C) | -20 ~ +60° |
| Color | BLACK |
| Power | 48VDC |
| Height | 58mm |
| Width | 109mm |
| Depth | 145mm |
| Warranty | 24 Months |
