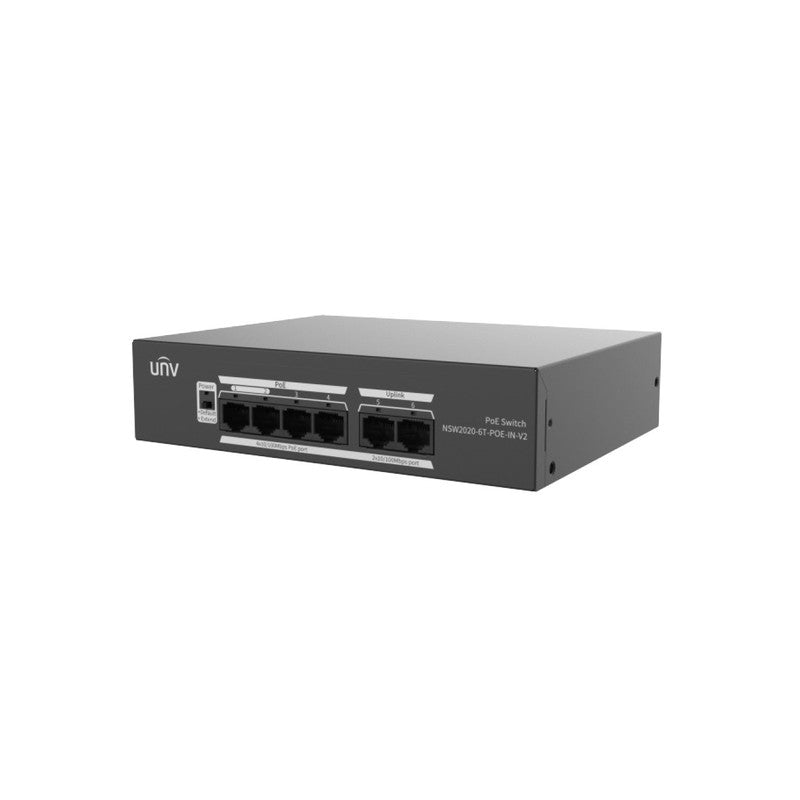

Uniview 4port ( 6p) Switch 4x POE 65w POE Total Capacity 2x Poe+ 2x100m Uplink L2 Unmanaged Black 240vac
SKU: NSW20206TPOEINV2
$93.92
The Uniview 4port (6p) Switch 4x POE 65w POE Total Capacity 2x Poe+ 2x100m Uplink L2 Unmanaged Black 240vac is a compact Layer 2 unmanaged network switch designed for small-scale surveillance and data applications. It provides four Power over Ethernet ports with a total capacity of 65W, supporting two PoE+ ports, alongside two 100M uplink ports for flexible network integration.
Key Features
- 4x POE ports with 65W total POE capacity
- 2x PoE+ ports for higher power delivery to compatible devices
- 2x 100M uplink ports for network connectivity
- 1.2Gbps switching capacity and 0.90Mbps forwarding rate
- Layer 2 unmanaged design for plug-and-play operation
- Black metal housing with dimensions of 40H x 169W x 132D mm
- Operates on 240VAC power supply
- Operating temperature range of 0 to +40°C
Technical Specifications
Technical Specifications
| Brand | UNIVIEW |
| Total Port No | 4PORT |
| Product Type | SWITCH |
| Poe Type | POE , POE+ |
| Copper Uplink Port | 2x100M |
| Poe Total Capacity | 65W |
| Switching Capacity | 1.2Gbps |
| Management | L2 UNMANAGED |
| Operating Temperature (°C) | 0 ~ +40° |
| Color | BLACK |
| Power | 50-56VDC/ POE++ |
| Height | 40mm |
| Width | 169mm |
| Depth | 132mm |
| Warranty | 24 Months |
