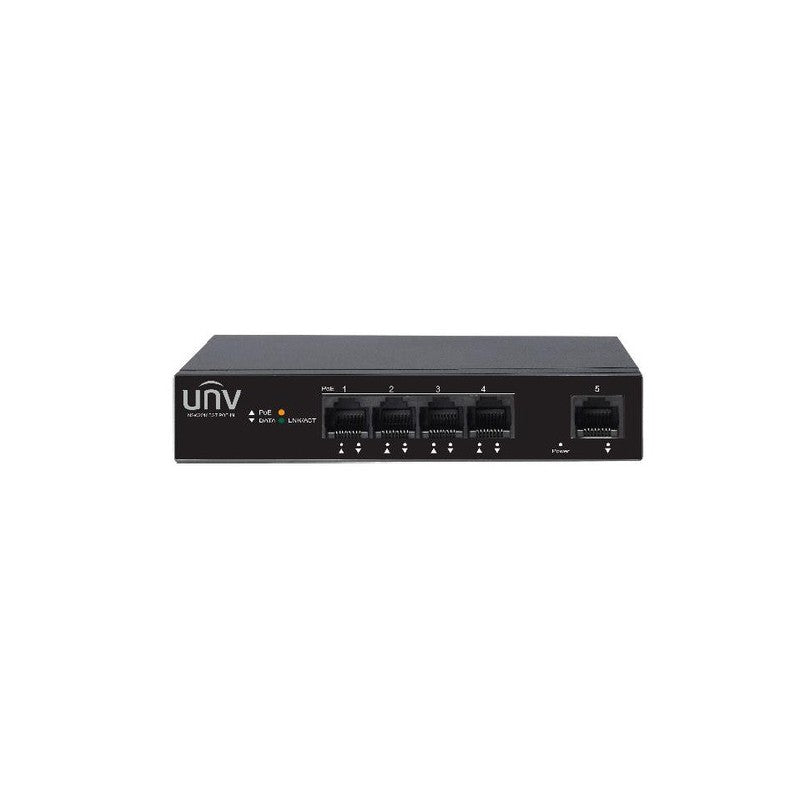

Uniview 4port ( 5p) Gigabit Switch 60w POE Total Capacity 4x Poe+ 1x1g Uplink L2 Unmanaged Black 240vac
SKU: NSW20105GTPOEIN
$109.72
The Uniview 4port (5p) Gigabit Switch 60w POE Total Capacity 4x Poe+ 1x1g Uplink L2 Unmanaged Black 240vac is a compact network device designed for small-scale surveillance and data applications. This unmanaged L2 switch provides a total Power over Ethernet capacity of 60W, supporting four PoE+ ports and a single 1G uplink for reliable connectivity.
Key Features
- 4 PoE+ ports with a total POE power budget of 60W
- 1x 1G uplink port for network expansion
- 10Gbps total switching capacity
- 7.4Mbps forwarding rate
- Layer 2 unmanaged operation for plug-and-play deployment
- Black metal housing with dimensions of 27.7H x 140W x 76.7D mm
- 240VAC power input with an operating temperature range of 0 to +40°C
Technical Specifications
Technical Specifications
| Brand | UNIVIEW |
| Total Port No | 4PORT ( 5P) |
| Product Type | GIGABIT SWITCH |
| Poe Type | POE , POE+ |
| Copper Uplink Port | 1x1G |
| Poe Total Capacity | 60W |
| Switching Capacity | 10Gbps |
| Management | L2 UNMANAGED |
| Operating Temperature (°C) | 0 ~ +40° |
| Color | BLACK |
| Power | 50-56VDC/ POE++ |
| Height | 27.7mm |
| Width | 140mm |
| Depth | 76.7mm |
| Warranty | 24 Months |
