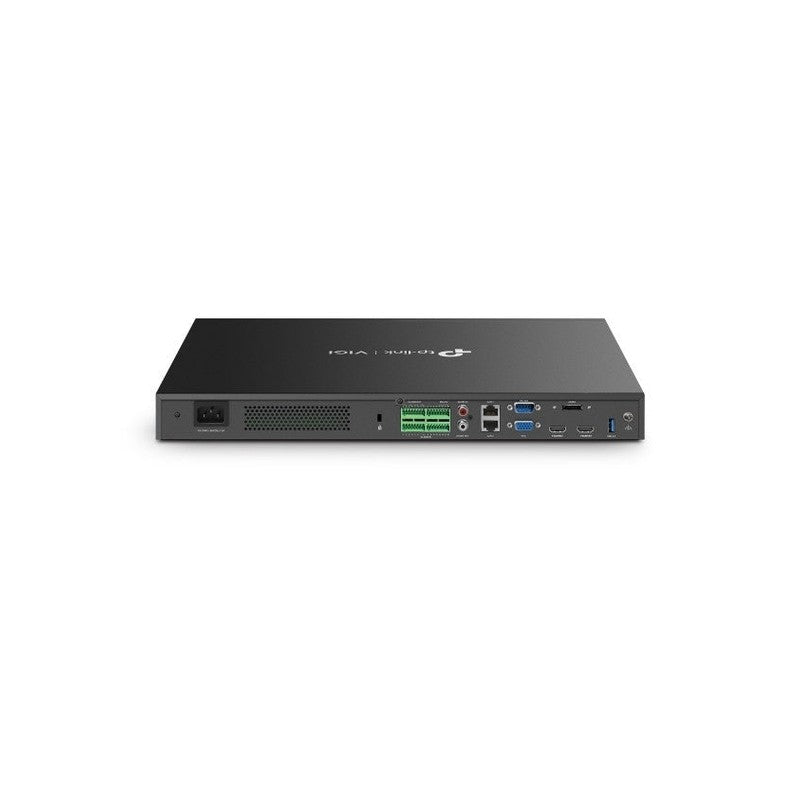

Tp-link Vigi Nvr4016h 4-bay 16ch NVR
SKU: VIGINVR4016H
$715.83
The TP-Link VIGI NVR4016H is a 16-channel network video recorder engineered for small to medium-sized businesses requiring comprehensive surveillance capabilities. It supports real-time monitoring with 16-channel live view and provides 4K HDMI video output to ensure high-definition clarity for detailed footage review.
Key Features
- 16-channel incoming and outgoing bandwidth of 320 Mbps each
- Dual Ethernet ports supporting network fault tolerance and port aggregation
- Decoding capability of up to 10 channels at 3MP (25fps) or 16 channels at 1080P (25fps)
- Four SATA interfaces, each supporting up to 16 TB of storage
- H.265+ compression technology to reduce bandwidth and storage usage
- 16-channel synchronous playback for simultaneous multi-camera review
- Remote monitoring via the dedicated VIGI app and web interface
Technical Specifications
| Video and Audio | |
|---|---|
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| HDMI Output Resolution | 2 Channels• HDMI1 Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz• HDMI2 Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Video Output Mode | • HDMI1/HDMI2 Independent output• HDMI1/VGA Independent outputNote: HDMI2 and VGA cannot operate simultaneously. If both connections are made, HDMI2 will take precedence and function as the primary output. |
| Multi-View Display | 1,4,6,8,9,16 |
