Tp-link Tl-eap211-bridge Kit Wireless Bridge 5 Ghz 867 Mbps Indoor/outdoor Access Point
SKU: TLEAP211BRIDGEKIT
$364.83
The TP-Link TL-EAP211-Bridge Kit is a 5 GHz wireless bridge designed for indoor and outdoor point-to-point or point-to-multipoint connectivity. It delivers a maximum wireless speed of 867 Mbps within an IP65 weatherproof enclosure, supporting stable HD video transmission for surveillance applications over distances of up to 1 km.
Key Features
- 5 GHz wireless standard with a maximum signal rate of 867 Mbps and 2x2 MU-MIMO support
- IP65 weatherproof enclosure rated for temperatures ranging from -40°F to 158°F

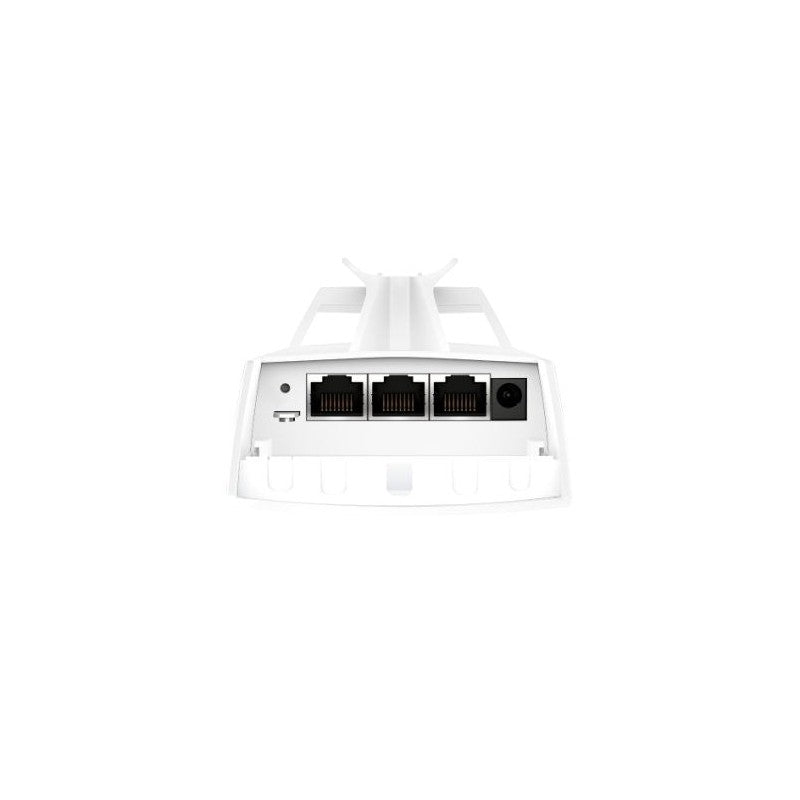

- Three Gigabit Ethernet ports for wired device connectivity
- Internal 2x2 dual-polarized directional MIMO antennas with 7.0 dBi gain
- Passive PoE power supply (12V DC / 24V) with adapter included in the kit
- Auto-pairing functionality and signal strength LEDs for simplified alignment and setup
- Supports standalone and Omada SDN modes for centralized management and batch deployment
Technical Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 3x Gigabit Ethernet Ports |
| Button | Reset |
| Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
| Power Consumption | 11.5W |
| Dimensions ( W x D x H ) | 8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm) |
| Antenna Type | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 7.0 dBi |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole Mounting (Accessories included) |
| WIRELESS FEATURES | |
| Coverage | 1000m(3280ft) |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • Mesh*4 • MU-MIMO: 5G 2×2 MU-MIMO DL • Load Balance • Beamforming • Airtime Fairness • Multiple SSIDs: 8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication*4 • Maximum number of MAC Filter: 4,000 • WPA-Personal/Enterprise, WPA2-Personal/Enterprise |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band 3, EIRP);• FCC: <22dBm (5 GHz band 1/4) |
| MANAGEMENT | |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • EAP211-Bridge KIT • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
