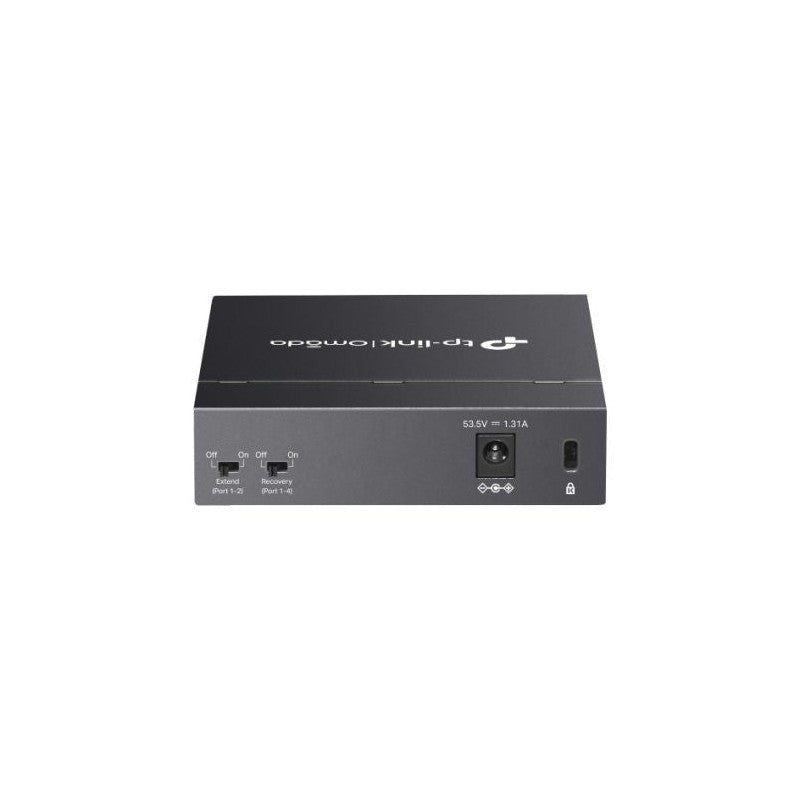

Tp-link Tl-ds105gp Omada 5-port Gigabit Unmanaged Desktop Switch With 4-port Poe+
SKU: TLDS105GP
$119.13
The TP-Link TL-DS105GP Omada 5-Port Gigabit Unmanaged Desktop Switch with 4-Port PoE+ is a compact networking solution designed for home and business environments. It provides five Gigabit Ethernet ports, with four supporting Power over Ethernet Plus (PoE+) to deliver both power and data over a single cable to devices such as IP cameras, wireless access points, and VoIP phones.
Key Features
- Five Gigabit Ethernet ports for high-speed data transmission
- Four ports support Power over Ethernet Plus (PoE+) technology
- Complies with IEEE 802.3af/at standards
- Unmanaged design for plug-and-play simplicity
- Compact desktop form factor suitable for home and business use
- Reduces cable clutter by combining power and data delivery
Technical Specifications
| Model | DS105GP |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Interface | 5*10/100/1000 Mbps RJ45 Ports with 4 PoE+ Ports (Port 1 to Port 4) |
| AUTO Negotiation/AUTO MDI/MDIX | Supported |
| Network Media (Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 100Base-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) |
| Max Power Consumption | 3.44 W (220 V/50 Hz, no PD connected) 74.54 W (220 V/50 Hz, with 65 W PD connected) |
| Max Heat Dissipation | 11.73 BTU/h (no PD connected) 254.18 BTU/h (with 65 W PD connected) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1 – Port 4 Power Supply: 65 W |
| Transmission Method | Store-And-Forward |
| Switch Capacity | 10 Gbps |
| MAC Address Table | 2K |
| Extend Mode | For Ports 1-2 |
| PoE Auto Recovery | For Ports 1-4 |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| LED | Power, Link/Act, PoE Status, PoE Max |
| Dimensions (W x D x H) | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
| Certification | FCC, CE, RoHS |
| Package Contents | Switch, Power Adapter, Installation Guide |
