Tane Hardwired Adjustable Screw Reed Switch White Detection Gap 6mm 1x N/c Output (dry) Plastic Recessed Mount 10.5mm Hole Cutout
SKU: TANTANE38ASHWH
$19.16

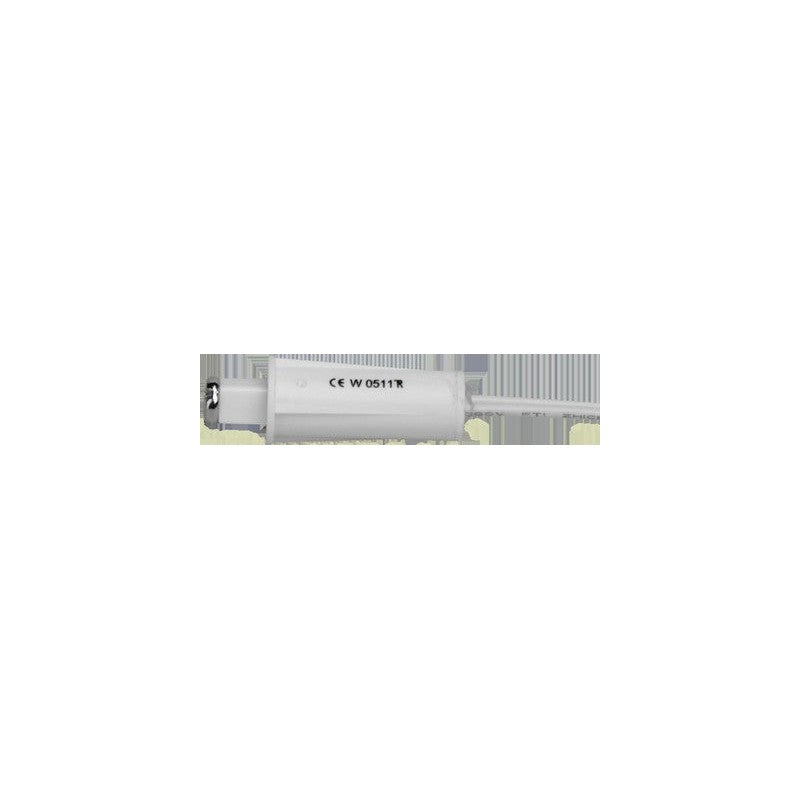

The Tane Hardwired Adjustable Screw Reed Switch White Detection Gap 6mm 1x N/c Output (dry) Plastic Recessed Mount 10.5mm Hole Cutout is a precision magnetic contact designed for hardwired intrusion detection systems. Manufactured by Tane, this device features a dry N/C output and a recessed plastic mount, ensuring a flush and secure installation within standard 10.5mm cutouts.
Key Features
- Hardwired magnetic reed switch with a 6mm detection gap
- Single Normally Closed (N/C) dry contact output
- Adjustable screw mechanism for precise gap calibration
- White plastic housing for a clean, recessed aesthetic
- Requires a 10.5mm hole cutout for installation
- Recessed mount design with 10.8mm diameter and 30.5mm height
- Compatible with standard hardwired alarm and security panels
Technical Specifications
Technical Specifications
| Brand | TANE |
| Wiring | HARDWIRED |
| Device Type | REED SWITCH |
| Colour | WHITE |
| Detection Range | DETECTION GAP 6MM |
| Alarm I/O | 1 OUTPUT |
| Material | PLASTIC |
| Mounting | RECESSED MOUNT |
| Diameter(mm) | 11.2mm |
| Warranty | LIMITED LIFETIME |
| Hole Cutout | 10.5 MM |
