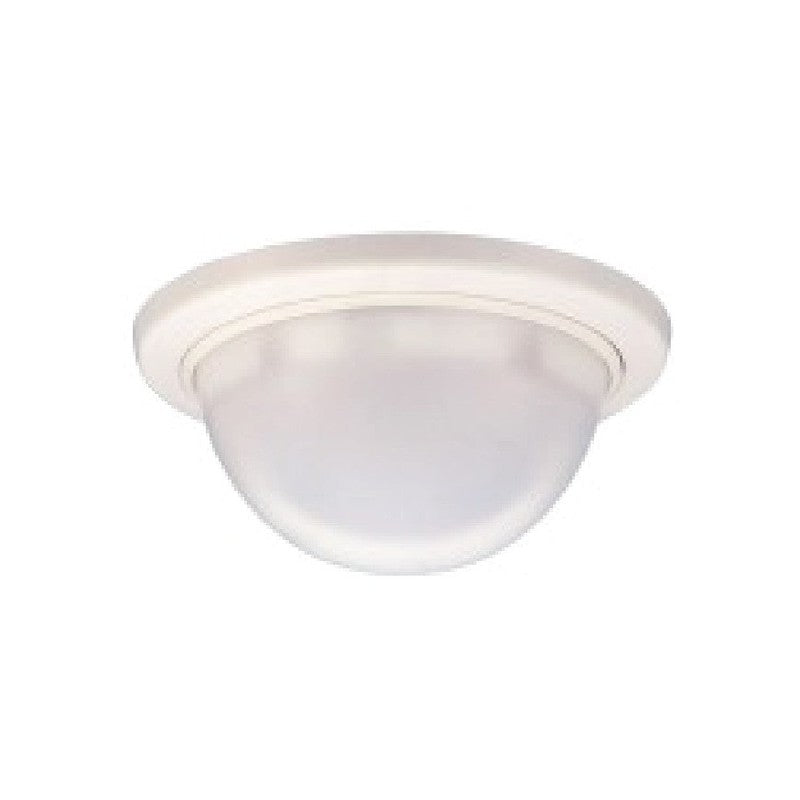

Takex Hardwired Wide Angle Pir White 12m Detection Area 1x Spst Configurable Output (dry) Plastic Ceiling/wall Mount Upto 2.6m Mount Height 10.5-30vdc

The Takex Hardwired Wide Angle PIR White is a professional-grade intrusion detection sensor designed for reliable perimeter security in indoor environments. This unit provides a 12-meter detection range with a wide-angle field of view, suitable for both ceiling and wall installations to cover expansive areas effectively.

Key Features

• 12-meter detection area with wide-angle coverage for comprehensive zone monitoring
• Single SPST configurable dry contact output for flexible alarm system integration
• Compatible with ceiling or wall mounting configurations up to a maximum height of 2.6 meters
• Operates on a 10.5–30VDC power supply for versatile system compatibility
• Includes a Normally Closed (N/C) tamper switch for physical security monitoring
• Compact white plastic housing with dimensions of 120mm diameter by 52.5mm height
