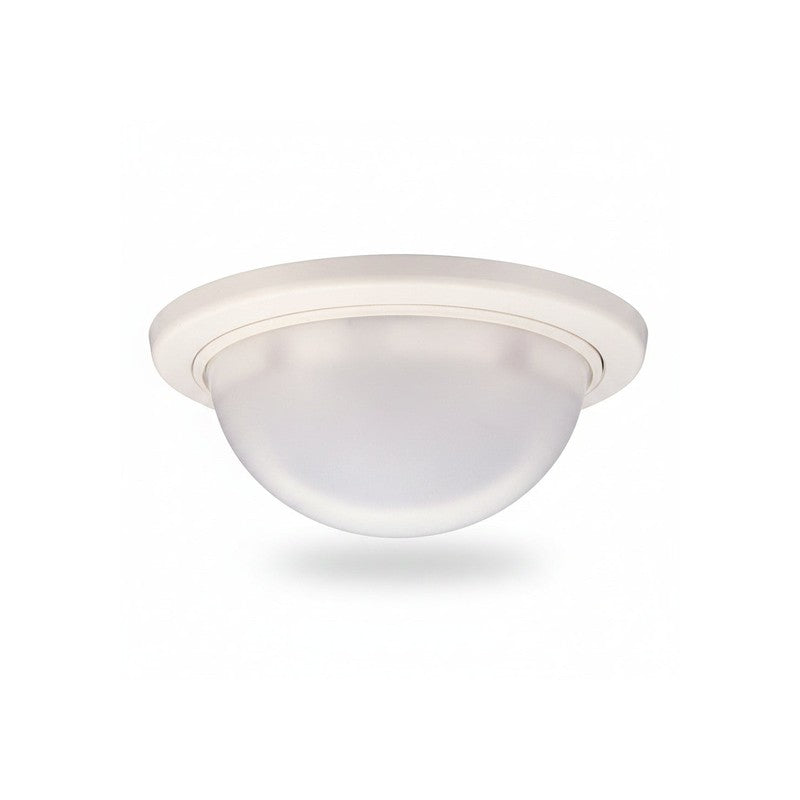

Takex Hardwired Wide Angle Pir White 12m Detection Area 1x Spst Configurable Output (dry) Plastic Ceiling/wall Mount Upto 2.6m Mount Height 10.5-28vdc
SKU: TAKPA6812
$169.96
The Takex Hardwired Wide Angle PIR White is a professional-grade indoor motion detector engineered for reliable perimeter security. This unit provides a 12-meter detection range with a wide-angle field of view, suitable for both wall and ceiling installations in residential or commercial environments.
Key Features
- 12-meter detection area with wide-angle coverage for comprehensive indoor monitoring
- Hardwired design operating on a 10.5–28VDC power supply
- Configurable 1x SPST dry contact output for flexible system integration
- Compatible with wall or ceiling mounting at heights up to 2.6 meters
- Includes built-in tamper switch (N/C) for enhanced security integrity
- Compact white plastic housing measuring 120mm in diameter and 47mm in height
Technical Specifications
Technical Specifications
| Brand | TAKEX |
| Wiring | HARDWIRED |
| Device Type | PIR |
| Colour | WHITE |
| Detection Range | 12M DETECTION AREA |
| Material | PLASTIC |
| Mounting | CEILING/WALL MOUNT |
| Installation Height | UPTO 2.6M MOUNT HEIGHT |
| Power | MULTI VOLTAGE , 12VDC , 24VDC |
| Warranty | 5 years |
