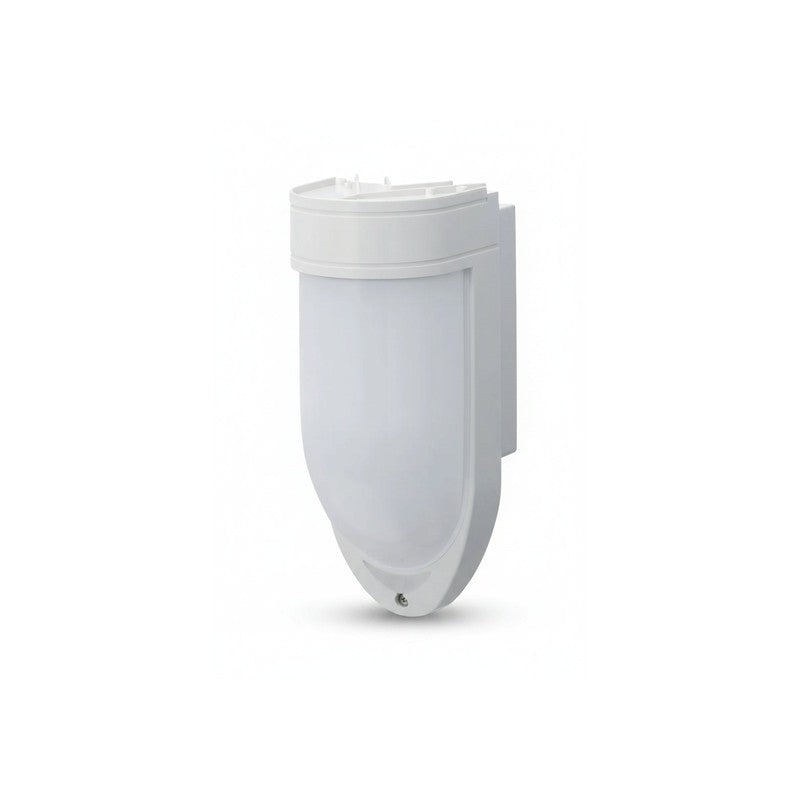

Takex Hardwired Wide Angle/ Anti Mask/ Pet Friendly Pir With Mirror Lens White 80°x 15m Detection Area 1x Spst Configurable 1x N/o Output Plastic Wall/ Pole Mount Ip55 2-6m Mount Height 9-28vdc
SKU: TAKPIRT15AM
$1,090.30
The Takex Hardwired Wide Angle/ Anti Mask/ Pet Friendly Pir With Mirror Lens White is a hardwired passive infrared sensor engineered for reliable perimeter detection in both indoor and outdoor environments. Designed with a mirror lens and medium animal immunity, this unit provides an 80° x 15m detection area while maintaining pet friendliness for residential and commercial security applications.
Key Features
- 80° x 15m detection area with wide-angle mirror lens technology
- Pet friendly with medium animal immunity to reduce false alarms
- IP55 rated enclosure suitable for indoor and outdoor installation
- Configurable 1x SPST and 1x N/O output with built-in tamper (N/C)
- Operates on a 9-28VDC power supply with a 2-6m recommended mount height
- Plastic wall or pole mount design with dimensions of 224.6DIA x 285.5H x 114W x 119.5D (mm)
- White finish for discreet integration into various architectural settings
Technical Specifications
Technical Specifications
| Brand | TAKEX |
| Wiring | HARDWIRED |
| Device Type | PIR |
| Lens Type | WITH MIRROR LENS |
| Colour | WHITE |
| Pet Friendly Size | MEDIUM ANIMAL IMMUNITY |
| Detection Range | 80°x 15M DETECTION AREA |
| Alarm I/O | 2 OUTPUT |
| Material | PLASTIC |
| Mounting | WALL/ POLE MOUNT |
| Ip Rating | IP55 |
| Installation Height | 2-6M MOUNT HEIGHT |
| Power | 9VDC , MULTI VOLTAGE , 12VDC , 24VDC |
| Warranty | 5 years |
