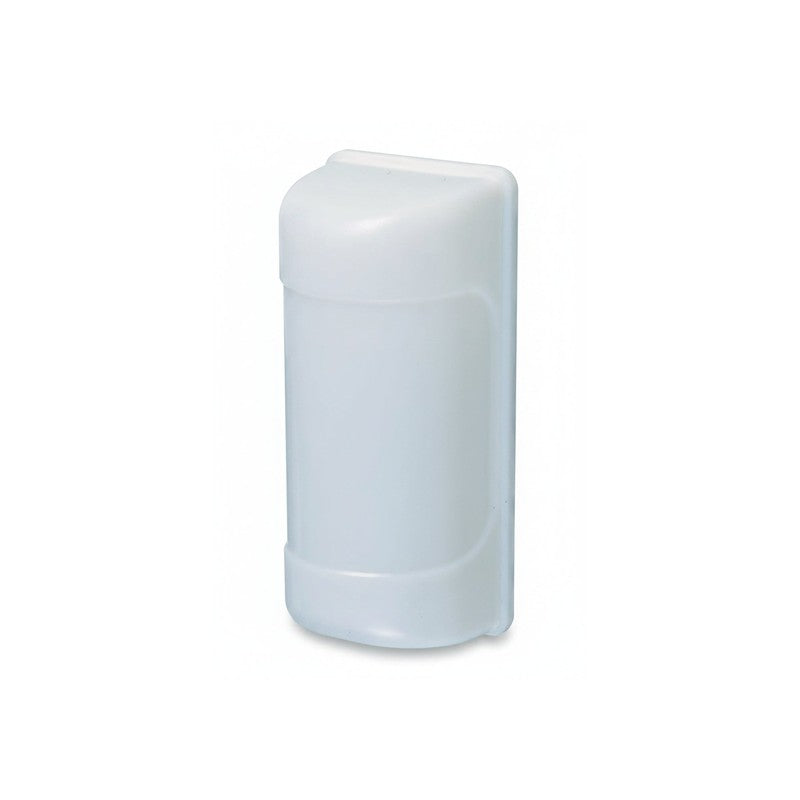

Takex Hardwired Pir With Wide Angle/ Curtain/ Long Range Selectable White 20m Detection Area 1x Spst Configurable Output (dry) Plastic Ceiling/wall Mount Weatherproof 0.8~1.5m Mount Height 10.5-28vdc
SKU: TAKMS100
$334.14
The Takex Hardwired PIR with Wide Angle/Curtain/Long Range Selectable White is a versatile motion detection unit engineered for both indoor and outdoor perimeter security applications. This device provides a 20-meter detection area and features a weatherproof plastic housing suitable for ceiling or wall mounting.
Key Features
- Selectable detection modes including Wide Angle, Curtain, and Long Range configurations
- 20-meter detection area with a required mounting height of 0.8 to 1.5 meters
- Single SPST configurable dry contact output for integration with alarm systems
- Weatherproof plastic construction designed for both indoor and outdoor use
- Flexible installation options supporting both ceiling and wall mounting
- Operates on a 10.5-28VDC power supply with an included N/C tamper switch
- Compact dimensions of 171H x 77W x 70D mm
Technical Specifications
Technical Specifications
| Brand | TAKEX |
| Wiring | HARDWIRED |
| Device Type | PIR |
| Lens Type | WITH WIDE ANGLE/ CURTAIN/ LONG RANGE SELECTABLE |
| Colour | WHITE |
| Detection Range | 20M DETECTION AREA |
| Material | PLASTIC |
| Mounting | CEILING/WALL MOUNT |
| Ip Rating | WEATHERPROOF |
| Installation Height | 0.8~1.5M MOUNT HEIGHT |
| Power | MULTI VOLTAGE , 12VDC , 24VDC |
| Warranty | 5 years |
