Takex Hardwired Pir With Mirror Lens White 14m Detection Area 1x Spdt Output Plastic Ceiling Mount 2.5~6m Mount Height 7-30vdc
SKU: TAKPA6614E
$265.90

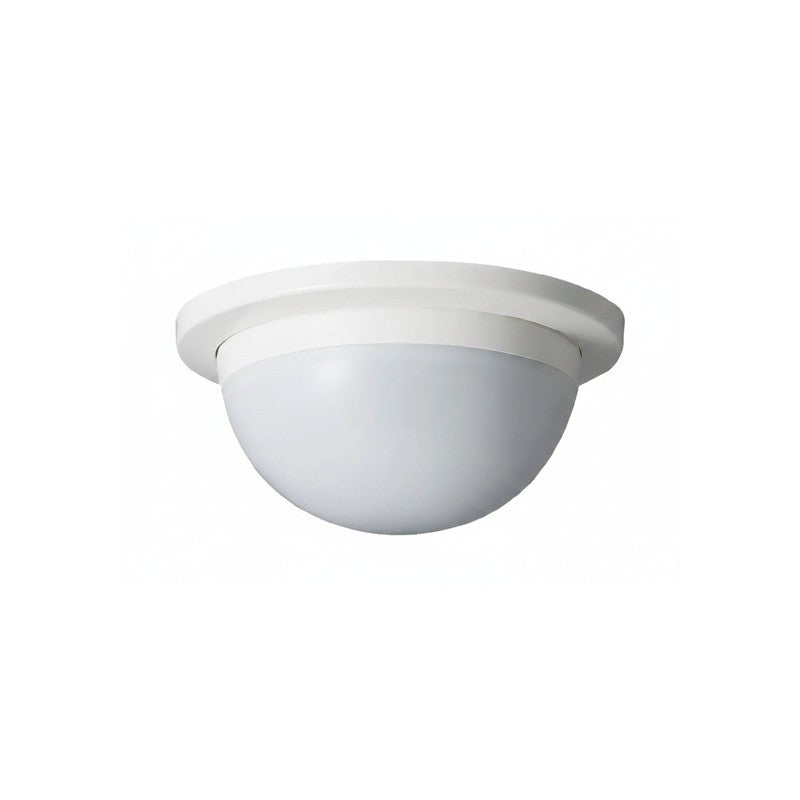

The Takex Hardwired PIR with Mirror Lens White is a ceiling-mounted motion detector engineered for reliable indoor perimeter security. This unit provides a 14-meter detection range and is designed for installation heights between 2.5 and 6 meters.
Key Features
- 14-meter detection area with mirror lens technology
- 1x SPDT (Single Pole Double Throw) output
- Plastic housing in white finish
- Designed for ceiling mounting at heights of 2.5 to 6 meters
- Operates on a 7-30VDC power supply
- Includes tamper switch (N/C) for security integrity
- Compact dimensions of 120mm diameter by 55mm height
Technical Specifications
Technical Specifications
| Brand | TAKEX |
| Wiring | HARDWIRED |
| Device Type | PIR |
| Lens Type | WITH MIRROR LENS |
| Colour | WHITE |
| Detection Range | 14M DETECTION AREA |
| Alarm I/O | 1 OUTPUT |
| Material | PLASTIC |
| Mounting | CEILING MOUNT |
| Installation Height | 2.5~6M MOUNT HEIGHT |
| Power | 9VDC , MULTI VOLTAGE , 12VDC , 24VDC |
| Warranty | 12 Months |
