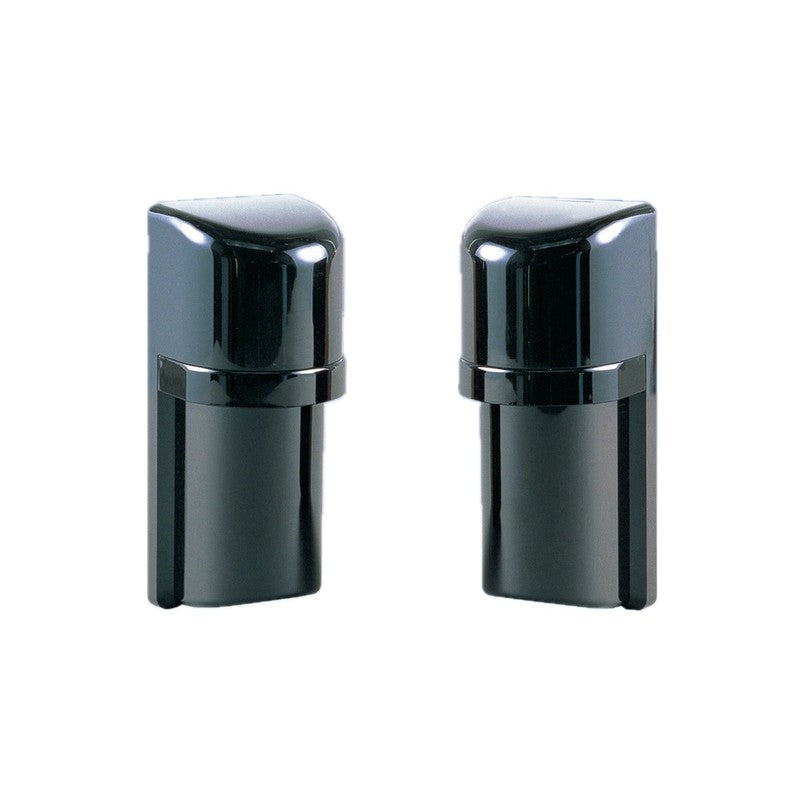

Takex Hardwired Pe Beam With Twin Beam Black Indoor 80m/ Outdoor 40m Detection Area 1x Spdt Output Plastic Wall/ Pole Mount 12-30vdc
SKU: TAKPB40TE
$730.12
The Takex Hardwired PE Beam With Twin Beam Black is a dual-beam passive infrared detector engineered for perimeter security in both indoor and outdoor environments. Designed for robust performance, this unit provides an extended detection range of 80 meters indoors and 40 meters outdoors, suitable for high-security applications requiring reliable intrusion alerts.
Key Features
- Dual-beam passive infrared technology with 80m indoor and 40m outdoor detection range
- Single SPDT (Single Pole Double Throw) output for flexible alarm panel integration
- Includes a Normally Closed (N/C) tamper switch for physical security monitoring
- Operates on a 12-30VDC power supply for stable hardwired installation
- Constructed with a black plastic housing suitable for wall or pole mounting
- Compact dimensions of 170mm (H) x 73mm (W) x 71.5mm (D)
Technical Specifications
Technical Specifications
| Brand | TAKEX |
| Wiring | HARDWIRED |
| Device Type | PE BEAM |
| Lens Type | WITH TWIN BEAM |
| Colour | BLACK |
| Detection Range | INDOOR 80M/ OUTDOOR 40M DETECTION AREA |
| Alarm I/O | 1 OUTPUT |
| Material | PLASTIC |
| Mounting | WALL/ POLE MOUNT |
| Power | MULTI VOLTAGE , 12VDC , 24VDC |
| Warranty | 5 years |
