Takex Hardwired Pe Beam With Twin Beam Black Indoor 40m/ Outdoor 20m Detection Area 1x Spdt Output Plastic Wall/ Pole Mount 12-30vdc
SKU: TAKPB20TE
$668.32

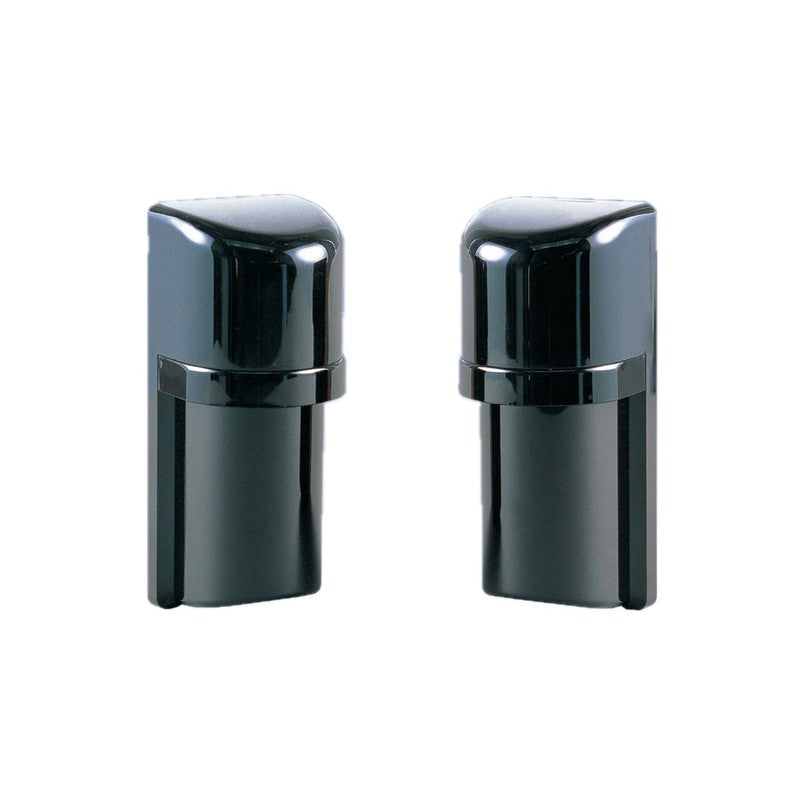

The Takex Hardwired PE Beam With Twin Beam Black Indoor 40m/ Outdoor 20m Detection Area 1x Spdt Output Plastic Wall/ Pole Mount 12-30vdc is a dual-beam perimeter security sensor designed for reliable intrusion detection in both indoor and outdoor environments. Manufactured by Takex, this unit provides a detection range of 40 meters indoors and 20 meters outdoors, featuring a compact black housing suitable for wall or pole mounting.
Key Features
- Dual-beam configuration for enhanced detection accuracy and reduced false alarms
- Detection range of 40 meters for indoor applications and 20 meters for outdoor applications
- Single SPDT (Single Pole Double Throw) output for integration with alarm control panels
- Operates on a 12-30VDC power supply
- Includes a Normally Closed (N/C) tamper switch for security monitoring
- Black plastic housing designed for wall or pole mounting
- Compact dimensions of 170mm (H) x 73mm (W) x 71.5mm (D)
Technical Specifications
Technical Specifications
| Brand | TAKEX |
| Wiring | HARDWIRED |
| Device Type | PE BEAM |
| Lens Type | WITH TWIN BEAM |
| Colour | BLACK |
| Detection Range | INDOOR 40M/ OUTDOOR 20M DETECTION AREA |
| Alarm I/O | 1 OUTPUT |
| Material | PLASTIC |
| Mounting | WALL/ POLE MOUNT |
| Power | MULTI VOLTAGE , 12VDC , 24VDC |
| Warranty | 5 years |
