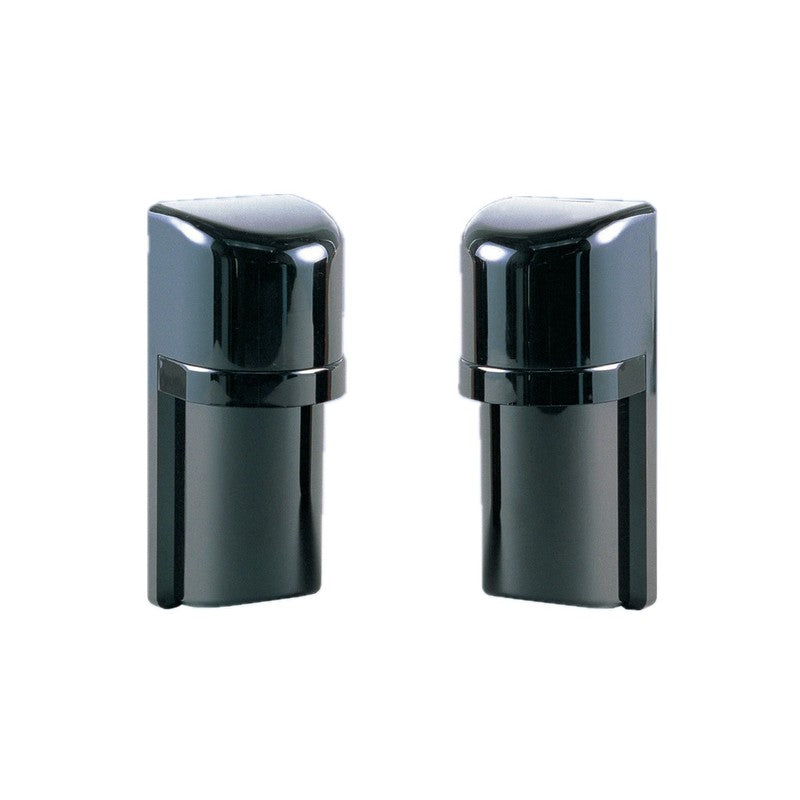

Takex Hardwired Pe Beam With Twin Beam Black Indoor 120m/ Outdoor 60m Detection Area 1x Spdt Output Plastic Wall/ Pole Mount 12-30vdc
SKU: TAKPB60TE
$770.74
The Takex Hardwired PE Beam With Twin Beam Black Indoor 120m/ Outdoor 60m Detection Area 1x Spdt Output Plastic Wall/ Pole Mount 12-30vdc is a hardwired perimeter intrusion detection device designed for both indoor and outdoor environments. This black-finished unit provides a detection range of 120 metres indoors and 60 metres outdoors, featuring a single SPDT output and a tamper switch for system integrity.
Key Features
- Detection range of 120 metres indoors and 60 metres outdoors
- Single SPDT (Single Pole Double Throw) output for alarm panel integration
- Includes a Normally Closed (N/C) tamper switch for security monitoring
- Operates on a 12-30VDC hardwired power supply
- Plastic housing suitable for wall or pole mounting
- Compact dimensions of 170H x 73W x 71.5D mm
- Black finish for discreet installation in residential or commercial settings
Technical Specifications
Technical Specifications
| Brand | TAKEX |
| Wiring | HARDWIRED |
| Device Type | PE BEAM |
| Lens Type | WITH TWIN BEAM |
| Colour | BLACK |
| Detection Range | INDOOR 120M/ OUTDOOR 60M DETECTION AREA |
| Alarm I/O | 1 OUTPUT |
| Material | PLASTIC |
| Mounting | WALL/ POLE MOUNT |
| Power | MULTI VOLTAGE , 12VDC , 24VDC |
| Warranty | 5 years |
