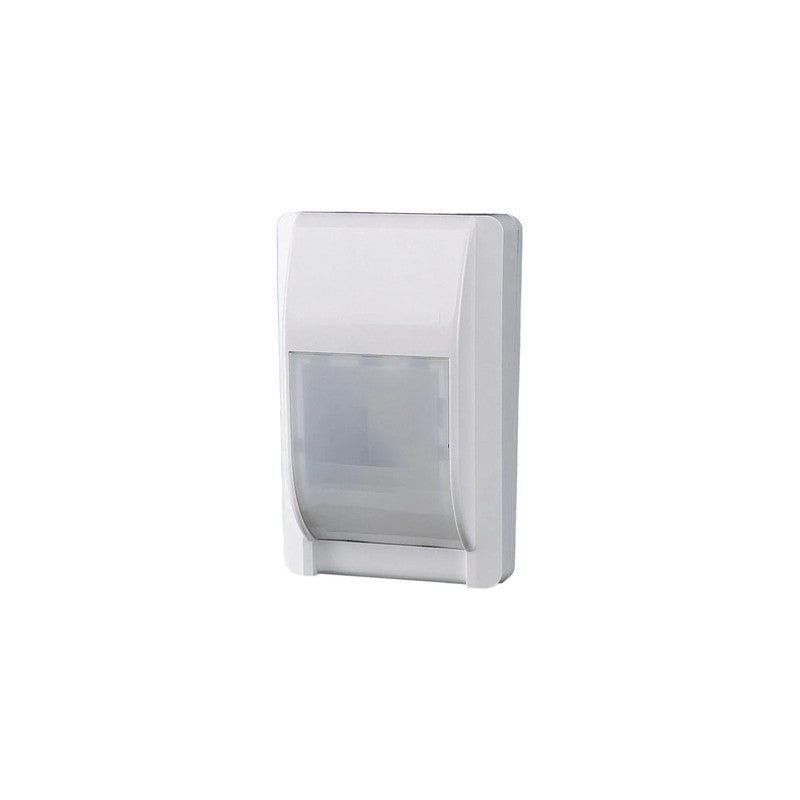

Takex Hardwired Curtain Pir White 16.5m Detection Area 1x Spst Configurable Output (dry) Plastic Wall Mount Upto 2.5m Mount Height 10-18vdc
SKU: TAKPA460EA
$134.76
The Takex Hardwired Curtain PIR is a white, wall-mounted motion detector engineered for perimeter security applications. It provides a detection range of 16.5m and operates on a 10-18VDC power supply, making it suitable for integration into standard alarm systems.
Key Features
- 16.5m detection area for effective perimeter coverage
- 1x SPST configurable dry contact output
- Hardwired connection with 10-18VDC operating voltage
- Includes tamper switch (N/C) for system integrity
- Plastic wall mount design with a maximum installation height of 2.5m
- Compact dimensions of 110H x 70W x 45D mm
- White finish for discreet installation
Technical Specifications
Technical Specifications
| Brand | TAKEX |
| Wiring | HARDWIRED |
| Device Type | PIR |
| Colour | WHITE |
| Detection Range | 16.5M DETECTION AREA |
| Material | PLASTIC |
| Mounting | WALL MOUNT |
| Installation Height | UPTO 2.5M MOUNT HEIGHT |
| Power | MULTI VOLTAGE , 12VDC |
| Warranty | 5 years |
