Takex Hardwired 360° Pir Black 360°x 15.2m Detection Area 1x Spst Configurable Output (dry) Plastic Ceiling/wall Mount Upto 4.9m Mount Height 10.5-28vdc
SKU: TAKPA6810EBL
$212.40

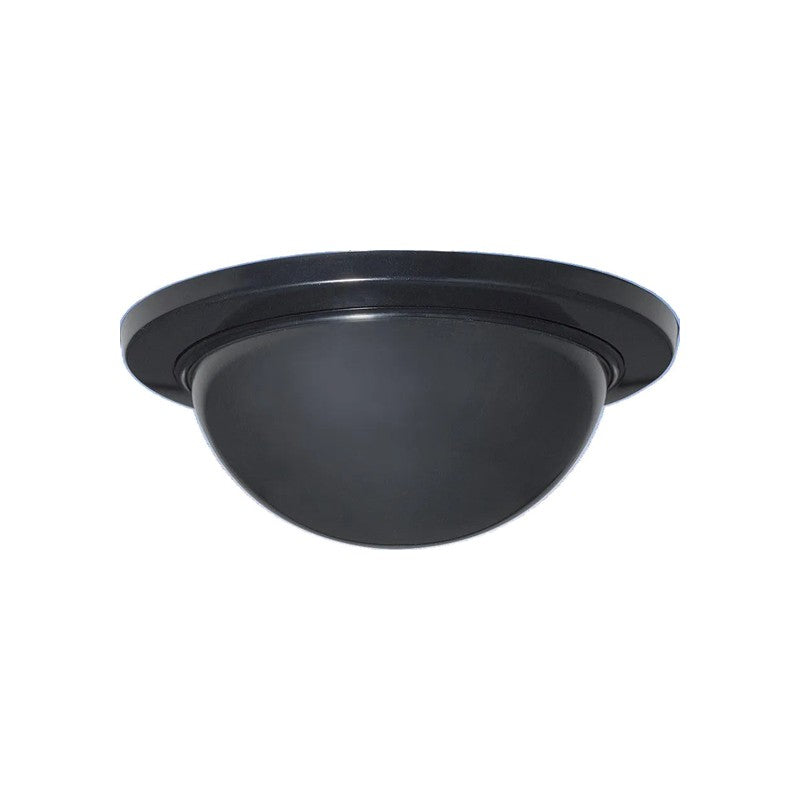

The Takex Hardwired 360° PIR Black is a hardwired indoor motion detector designed for comprehensive perimeter protection. It provides a wide 360° field of view with a detection range of 15.2 meters, suitable for both ceiling and wall installations in commercial or residential security systems.
Key Features
- 360° detection angle with a 15.2-meter detection radius
- Single SPST configurable dry contact output
- Compatible with 10.5–28 VDC power supply
- Supports mounting heights up to 4.9 meters
- Includes built-in tamper switch (N/C) for security integrity
- Compact plastic housing with dimensions of 120mm diameter x 47mm height
- Flexible installation options for both ceiling and wall mounting
Technical Specifications
Technical Specifications
| Brand | TAKEX |
| Wiring | HARDWIRED |
| Device Type | PIR |
| Colour | BLACK |
| Detection Range | 360°x 15.2M DETECTION AREA |
| Material | PLASTIC |
| Mounting | CEILING/WALL MOUNT |
| Installation Height | UPTO 4.9M MOUNT HEIGHT |
| Power | MULTI VOLTAGE , 12VDC , 24VDC |
| Warranty | 5 years |
