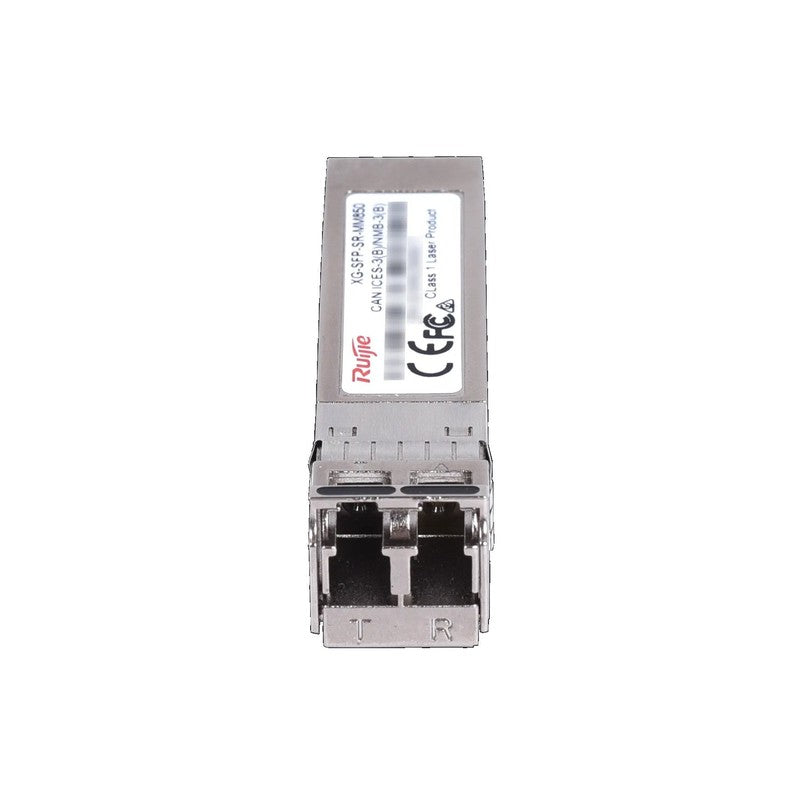

Ruijie Reyee Ruijie Xg-sfp-sr-mm850 10gbase-sr Sfp+ 850nm Mmf Optical Transceiver
SKU: XGSFPSRMM850
$127.18
The Ruijie Reyee Ruijie Xg-sfp-sr-mm850 10gbase-sr Sfp+ 850nm Mmf Optical Transceiver is a 10GBASE-SR SFP+ module engineered for short-range 10 Gigabit fibre uplinks over multimode infrastructure. Operating at an 850nm wavelength, this transceiver supports link distances of up to 300m over OM3 fibre and 400m over OM4 fibre, utilizing a duplex LC connector for structured network environments.
Key Features
- Supports 10.3125Gbps transmission speeds compliant with the 10GBASE-SR standard
- Utilizes 850nm wavelength optics specifically designed for multimode fibre (MMF) applications
- Achieves link distances of up to 300m over OM3 fibre and up to 400m over OM4 fibre
- Features a duplex LC connector interface for standard transmit and receive fibre strand configurations
- Compact SFP+ form factor compatible with 10G SFP+ ports on supported Ruijie switches
- Optimized for short-range switch-to-switch uplinks, aggregation links, and rack-to-rack connections
- Suitable for CCTV network backbones and business fibre upgrades within existing multimode cabling
Technical Specifications
| Product Type | 10G SFP+ optical transceiver module. |
| Model | XG-SFP-SR-MM850. |
| Optical Standard | 10GBASE-SR optical transceiver. |
| Data Rate | 10.3125Gbps. |
| Form Factor | SFP+. |
| Wavelength | 850nm. |
| Maximum Link Distance | Up to 300m over OM3 fibre or up to 400m over OM4 fibre. |
| Connector Type | Duplex LC. |
| Fibre Type | Multimode fibre. |
| Fibre End Face | Ultra Physical Contact finish. |
| Transmitter Type | VCSEL transmitter. |
| Receiver Type | PIN receiver. |
| Compliance | Conforms to IEEE 802.3ae, SFF-8431, SFP+ MSA and RoHS standards. |
| Use Case | 10G short-range multimode fibre uplinks for compatible Ruijie networking equipment. |
