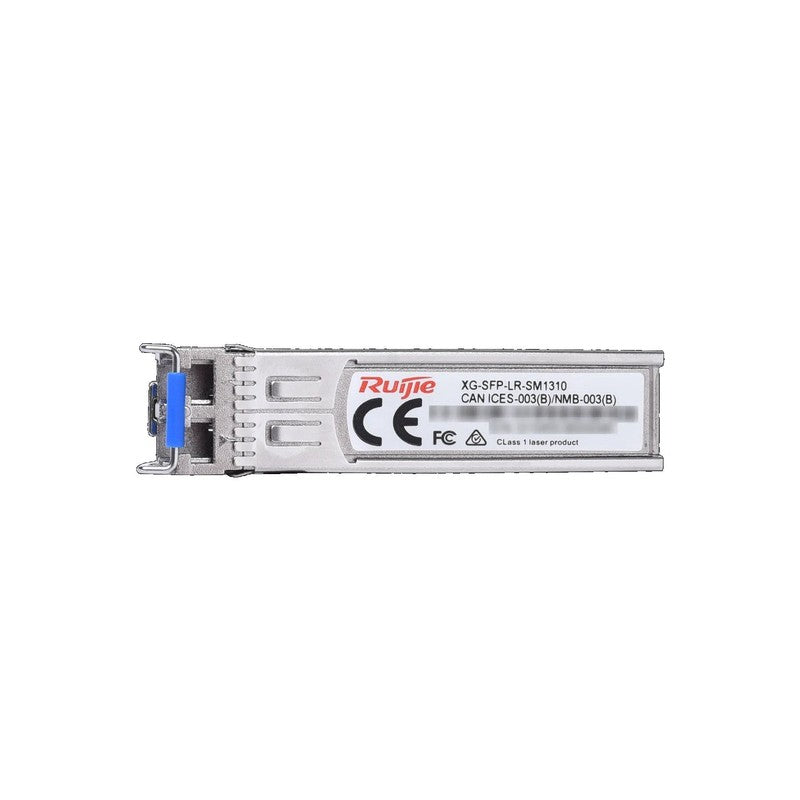

Ruijie Reyee Ruijie Xg-sfp-lr-sm1310 10g Sfp+ 1310nm 10km Lc Smf Optical Transceiver
SKU: XGSFPLRSM1310
$201.99
The Ruijie Reyee Ruijie Xg-sfp-lr-sm1310 10g Sfp+ 1310nm 10km Lc Smf Optical Transceiver is a 10GBASE-LR SFP+ optical transceiver designed for 10 Gigabit fibre uplinks over single-mode fibre. Operating at a 1310nm wavelength, it supports link distances of up to 10km using a duplex LC connector, making it suitable for switch-to-switch, switch-to-router, and long-distance building interconnects where copper cabling is not practical.
Key Features
- Supports 10.3125Gbps data transmission for high-speed uplinks between switches, routers, and aggregation equipment.
- Provides up to 10km reach over single-mode fibre (SMF), ideal for building-to-building links and campus backbones.
- Utilizes 1310nm wavelength and 10GBASE-LR optical specification for standard single-mode 10G links.
- Features a duplex LC interface for separate transmit and receive fibre strands, compatible with standard structured fibre cabling.
- Compact SFP+ form factor fits compatible 10G SFP+ ports on supported Ruijie switches and network equipment.
- Hot-pluggable design allows for easy installation and maintenance in enterprise network environments.
Technical Specifications
| Product Type | 10G SFP+ optical transceiver module. |
| Model | XG-SFP-LR-SM1310. |
| Optical Standard | 10GBASE-LR optical transceiver. |
| Data Rate | 10.3125Gbps. |
| Form Factor | SFP+. |
| Wavelength | 1310nm. |
| Maximum Link Distance | Up to 10km over single-mode fibre. |
| Connector Type | Duplex LC. |
| Fibre Type | Single-mode fibre. |
| Fibre End Face | Ultra Physical Contact finish. |
| Transmitter Type | DFB transmitter. |
| Receiver Type | PIN receiver. |
| Compliance | Conforms to IEEE 802.3ae, SFF-8431, SFP+ MSA and RoHS standards. |
| Use Case | 10G single-mode fibre uplinks for compatible Ruijie networking equipment. |
