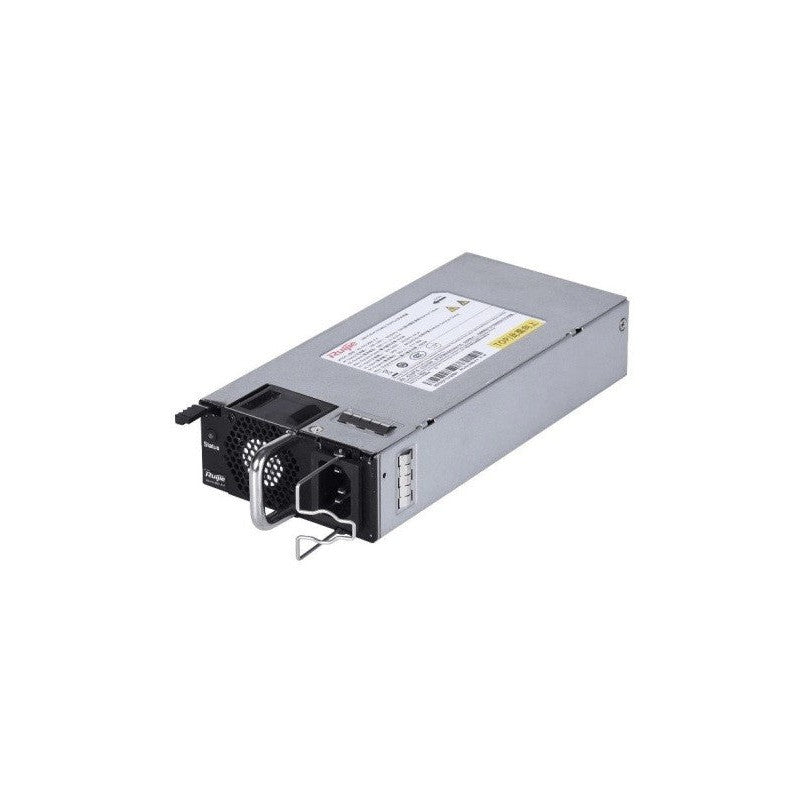

Ruijie Reyee Ruijie Rg-pa1000i-p-f 1000w Ac/hvdc Power Module With 56v DC Output, 740w POE Power, Rg-s5310 Series Switch Compatibility
SKU: RGPA1000IPF
$969.95
The Ruijie Reyee Ruijie Rg-pa1000i-p-f 1000w Ac/hvdc Power Module With 56v DC Output, 740w POE Power, Rg-s5310 Series Switch Compatibility is a 1000W AC/HVDC power module engineered for high-capacity internal power supply in access-layer networking. Designed for selected Ruijie PoE switches, it delivers a 56V DC output and a 740W PoE power budget to support demanding deployments of wireless access points, IP cameras, and intercoms.
Key Features
- Provides up to 1000W output power with a 56V DC output specification
- Delivers a 740W PoE power budget for multiple connected network edge devices
- Compatible with RG-S5310 series switches, including RG-S5310-24GT4XS-P-E and RG-S5310-48GT4XS-P-E
- Supports both AC and HVDC input for flexibility across different enterprise power infrastructures
- Features rear-to-front airflow to align with standard rack cooling designs
- Intended for professional network upgrades and replacement power supply requirements
Technical Specifications
| Product Type | Internal power module for selected Ruijie PoE switches. |
| Model | RG-PA1000I-P-F. |
| Total Output Power | 1000W maximum output when used within the supported higher input voltage range. |
| PoE Power Budget | 740W PoE power available for connected PoE devices. |
| DC Output | 56V DC output. |
| Input Type | AC input and HVDC input support. |
| AC Input Voltage | 100V AC to 240V AC. |
| AC Frequency | 50Hz to 60Hz. |
| HVDC Input | 240V DC. |
| Output by Input Range | 930W output at 90V AC to 176V AC; 1000W output at 176V AC to 290V AC. |
| Maximum Input Current | 12A at 90V AC; 8A at 176V AC. |
| Compatible RG-S5310 Models | RG-S5310-24GT4XS-P-E and RG-S5310-48GT4XS-P-E. |
| Additional Compatible Series | Selected RG-S5760-X PoE, RG-CS83 PoE, RG-CS85 PoE and RG-CS86 PoE models. |
| Airflow Direction | Rear-to-front ventilation. |
| Operating Temperature | -10°C to 55°C. |
