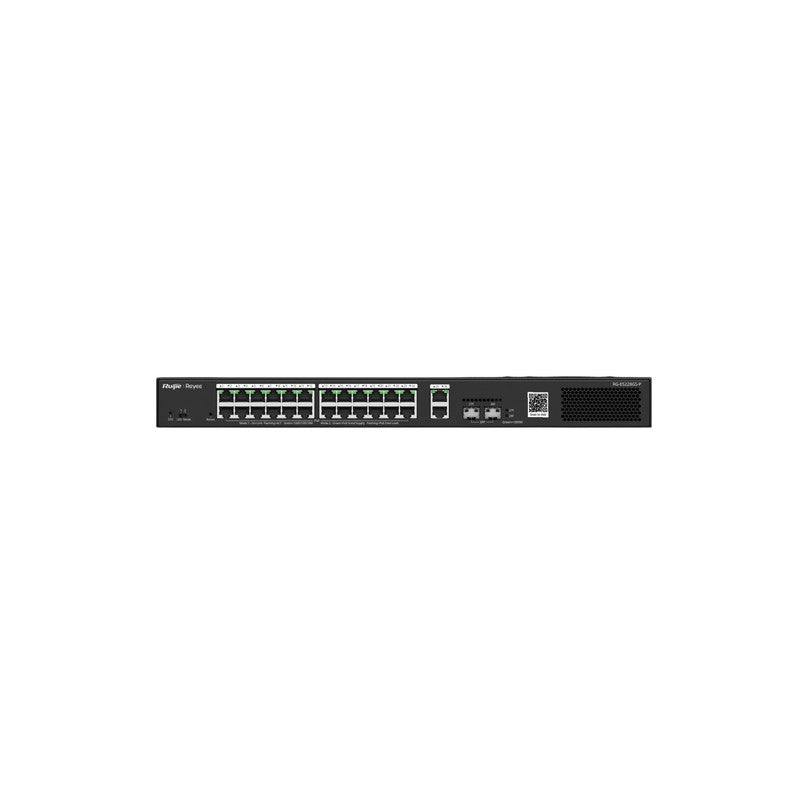

Ruijie Reyee Ruijie Rg-es228gs-p 28-port Gigabit Smart Cloud Managed POE Switch
SKU: RGES228GSP
$693.94
The Ruijie Reyee Ruijie Rg-es228gs-p 28-port Gigabit Smart Cloud Managed POE Switch is a 28-port Gigabit smart cloud managed PoE switch designed for CCTV, small business, retail, hospitality, education, factory, and surveillance networks. It provides 24 Gigabit PoE+ ports for powering IP cameras and wireless access points, plus 2 additional Gigabit RJ45 ports and 2 Gigabit SFP ports for uplinks.
Key Features
- 24 Gigabit PoE+ ports for powering IP cameras, wireless access points, and other PoE devices
- 370W PoE budget suitable for medium-sized IP camera systems with mixed power requirements
- 2 Gigabit RJ45 uplink ports and 2 Gigabit SFP ports for flexible network connectivity
- Smart CCTV network functions including IP camera/NVR recognition, PoE watchdog, and individual port reboot
- Automatic loop prevention to maintain network stability in case of accidental cabling loops
- Cloud-based monitoring and management via Ruijie Cloud for VLAN configuration and statistics checking
- Port isolation and IPC offline alarm support to reduce troubleshooting time on camera networks
Technical Specifications
| Product Type | 28-port Gigabit smart cloud managed PoE switch. |
| Switch Category | Layer 2 smart CCTV switch. |
| PoE Ports | 24 Gigabit PoE+ output ports. |
| RJ45 Ports | 26 total 10/100/1000BASE-T RJ45 ports. |
| SFP Ports | 2 x 1GE SFP optical ports for uplink flexibility. |
| Total Ports | 28 ports total, including 26 RJ45 ports and 2 optical ports. |
| PoE Standard | Supports 802.3af and 802.3at PoE/PoE+ devices. |
| PoE Budget | 370W total PoE budget. |
| PoE Power Pins | Pins 1–2 positive and 3–6 negative. |
| Switching Capacity | 56 Gbps switching capacity. |
| Forwarding Rate | 41.6 Mpps forwarding rate. |
| Cloud Management | Supports Ruijie Cloud management for monitoring and configuration. |
| CCTV Features | IP camera/NVR recognition, IPC offline alarm and individual port reboot. |
| PoE Watchdog | Yes, designed to help recover unresponsive PoE devices. |
| Port Isolation | Yes, useful for separating connected devices on CCTV networks. |
| Loop Prevention | Automatic loop prevention helps maintain network continuity. |
| Extended Transmission | Supports up to 250 metre transmission mode where used within the product’s supported configuration limits. |
| Operating Temperature | 0°C to 40°C. |
| Package Weight | 4.0kg. |
| Dimensions | 440 mm x 214.9 mm x 44 mm. |
| Included Accessories | Power cable, quick start guide, warranty card, 2 mounting brackets, 4 foot pads and 8 screws. |
| Warranty | 3 years. |
