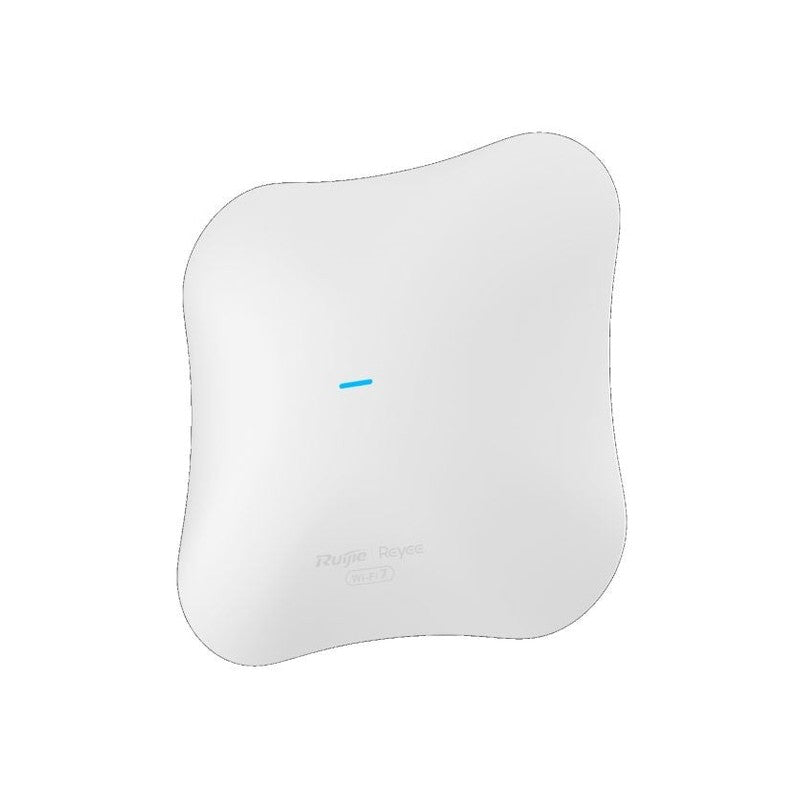

Ruijie Reyee Rg-rap72pro Be5000 Wi-fi 7 Ceiling Access Point With Dual-band Mlo, 4k-qam, 2.5g Port, Ruijie Cloud Management
SKU: RGRAP72PRO
$378.16
The Ruijie Reyee RG-RAP72Pro is a BE5000 Wi-Fi 7 ceiling access point engineered for indoor business environments requiring enhanced wireless throughput and modern protocol support. It delivers up to 5011Mbps combined dual-band speed, featuring 688Mbps on the 2.4GHz band and 4323Mbps on the 5GHz band to support high-demand applications in offices, hotels, and educational facilities.
Key Features
- BE5000 Wi-Fi 7 performance with up to 5011Mbps combined dual-band wireless speed
- Dual-band MLO support to improve throughput and reduce latency for compatible devices
- 2.5G Ethernet uplink port to minimize wired bottlenecks for multi-gigabit networking
- 5 spatial streams utilizing 2×2 MU-MIMO on 2.4GHz and 3×3 MU-MIMO on 5GHz
- 4K-QAM modulation for increased spectral efficiency and data rates
- Ruijie Cloud management for remote monitoring, configuration, and maintenance
- WIO Wi-Fi optimisation and Reyee AP Mesh capabilities for simplified deployment
Technical Specifications
| Product Type | Indoor ceiling access point. |
| Model | RG-RAP72Pro. |
| Wireless Standard | Wi-Fi 7, IEEE 802.11be. |
| Wireless Performance | Up to 5011Mbps combined dual-band wireless data rate. |
| 2.4GHz Data Rate | Up to 688Mbps. |
| 5GHz Data Rate | Up to 4323Mbps. |
| 6GHz Support | No 6GHz wireless radio. |
| Radio Design | Dual-radio with 5 spatial streams. |
| MIMO | 2.4GHz 2×2 MU-MIMO and 5GHz 3×3 MU-MIMO. |
| Antennas | 2 built-in omnidirectional antennas for 2.4GHz and 3 built-in omnidirectional antennas for 5GHz. |
| Wi-Fi 7 Features | Supports MLO and 4K-QAM for compatible Wi-Fi 7 devices. |
| Ethernet Ports | 1 x 10/100/1000BASE-T Gigabit port and 1 x 10/100/1000/2500BASE-T 2.5G port. |
| Power Supply | DC power adapter or PoE/PoE+ power input. |
| Local Power Supply | 12V DC, 2.5A via DC connector. |
| PoE Output | No PoE output budget. |
| Maximum Power Consumption | 30W. |
| Cloud Management | Supports Ruijie Cloud management for remote monitoring and maintenance. |
| Mesh Support | Supports Reyee AP Mesh for compatible wireless expansion. |
| Optimisation Features | Supports WIO Wi-Fi optimisation and AP portal features. |
| Maximum Associated Clients | 64 on 2.4GHz; 511 on 5GHz; 511 with both 2.4GHz and 5GHz enabled. |
| Managed Device Capacity | Up to 300 devices can be managed. |
| IPv6 | Supported. |
| Mounting Options | Ceiling or wall mounting. |
| IP Rating | IP41 indoor rating. |
| Operating Temperature | 0°C to 40°C. |
| Dimensions | 208 x 208 x 40 mm, excluding mounting bracket. |
| Weight | ≤ 0.75 kg, without packaging materials. |
| Colour | White. |
