Ruijie Reyee Rg-rap6260(g) Ax1800 Wi-fi 6 Outdoor Omnidirectional Access Point With Gigabit Sfp Port, Reyee Mesh, Ip68 Weatherproof Design
SKU: RGRAP6260G
$511.77
The Ruijie Reyee RG-RAP6260(G) is an AX1800 Wi-Fi 6 outdoor omnidirectional access point engineered for large-scale environments such as car parks, warehouses, and public plazas. It provides dual-band wireless performance up to 1774Mbps with 2×2 MU-MIMO support on both 2.4GHz and 5GHz bands, ensuring robust connectivity for high-density multi-user deployments.
Key Features
- Delivers AX1800 Wi-Fi 6 performance with a combined maximum throughput of 1774Mbps
- Supports 2×2 MU-MIMO technology on both 2.4GHz and 5GHz bands for enhanced multi-user efficiency
- Features an IP68 weatherproof housing designed for durability in harsh outdoor conditions
- Includes a Gigabit SFP port to facilitate fibre uplink for long-distance network deployments
- Equipped with a Gigabit Ethernet port for standard wired connectivity
- Compatible with Reyee Mesh technology to simplify wireless network expansion
- Managed via Ruijie Cloud for remote monitoring, centralised administration, and maintenance
Technical Specifications
| Product Type | Outdoor omnidirectional wireless access point. |
| Model | RG-RAP6260(G). |
| Wireless Standard | Wi-Fi 6, 802.11ax. |
| Wireless Performance | Up to 1774Mbps combined dual-band wireless data rate. |
| 2.4GHz Data Rate | Up to 573Mbps. |
| 5GHz Data Rate | Up to 1201Mbps. |
| Radio Design | Dual-radio with 4 spatial streams. |
| MIMO | 2.4GHz 2×2 MU-MIMO and 5GHz 2×2 MU-MIMO. |
| 6GHz Support | No 6GHz wireless radio. |
| Antennas | 2 built-in omnidirectional antennas for 2.4GHz and 2 built-in omnidirectional antennas for 5GHz. |
| Ethernet Port | 1 x 10/100/1000BASE-T Gigabit port. |
| SFP Port | 1 x 1GE SFP port for compatible optical uplink deployment. |
| Power Supply | PoE+ power supply. |
| Local Power Supply | No local DC power input. |
| Maximum Power Consumption | 18W. |
| Mesh Support | Supports Reyee Mesh for compatible wireless expansion. |
| Cloud Management | Supports Ruijie Cloud management, remote monitoring and maintenance. |
| Portal and Roaming | Supports cloud portal authentication, centralised network management and Layer 3 roaming. |
| Maximum Associated Clients | 64 on 2.4GHz; 256 on 5GHz; 256 with both 2.4GHz and 5GHz enabled. |
| Managed Device Capacity | Up to 300 devices can be managed. |
| IPv6 | Supported. |
| Weather Rating | IP68 weatherproof rating. |
| Surge Protection | 4000V surge protection. |
| Flame Retardant Rating | V0 flame retardant rating. |

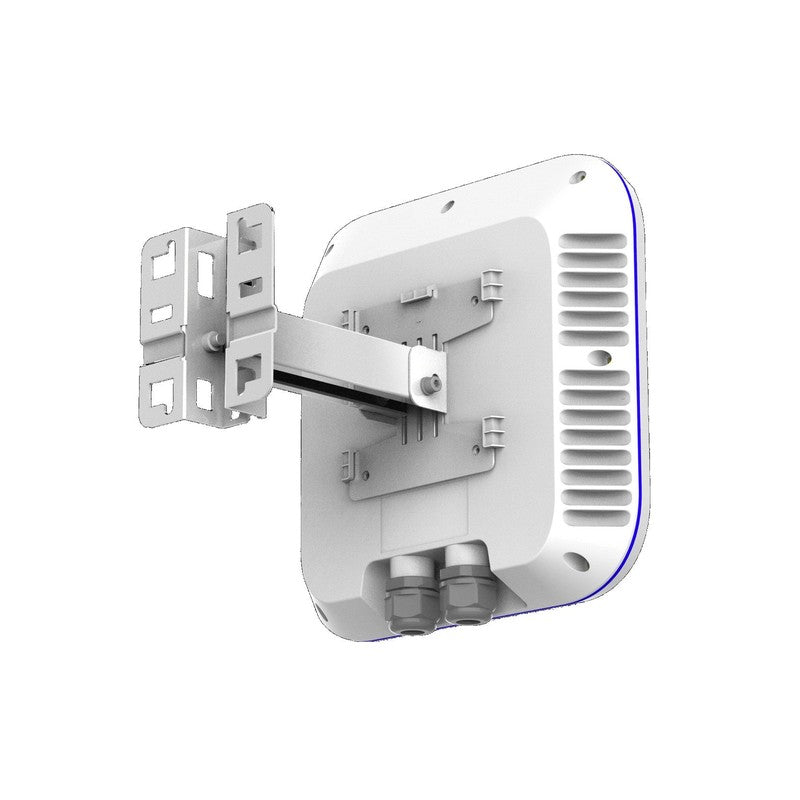

| Mounting Options | Wall or pole mounting with separated mounting bracket design. |
| Operating Temperature | -40°C to +65°C. |
| Dimensions | 298 x 298 x 65 mm, excluding mounting bracket. |
| Weight | ≤ 1.35 kg, without packaging materials. |
| Colour | White. |
