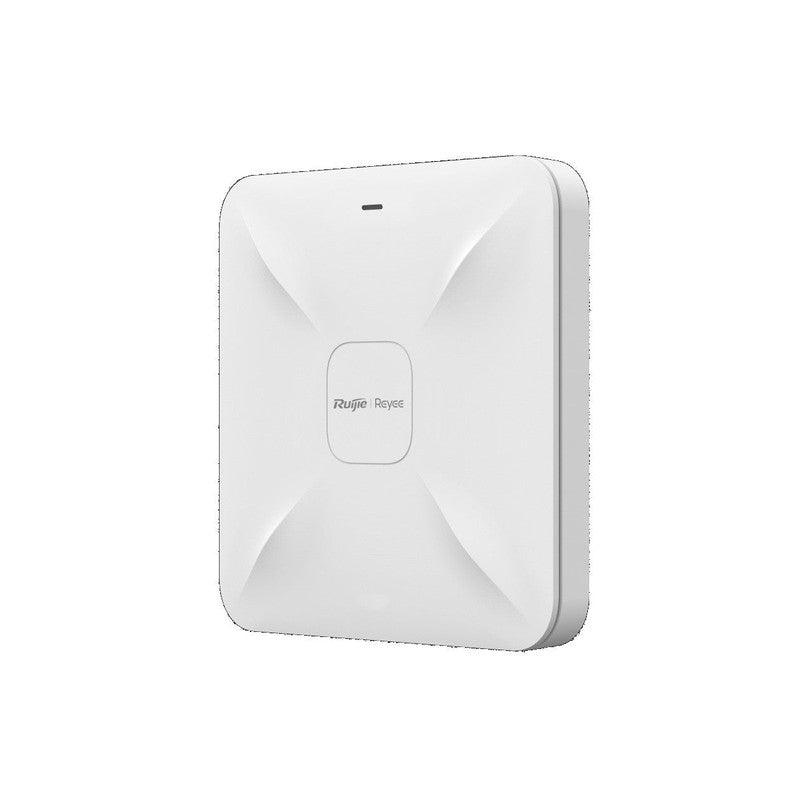

Ruijie Reyee Rg-rap2200(e) 1267mbps Wi-fi 5 Ceiling Access Point With Dual-band 2×2 Mu-mimo, 2 Gigabit Ports, Ruijie Cloud Management
SKU: RGRAP2200E
$179.29
The Ruijie Reyee RG-RAP2200(E) 1267Mbps Wi-Fi 5 Ceiling Access Point is a dual-band indoor solution engineered for hospitality, retail, education, and office environments. It provides reliable wireless coverage with 2×2 MU-MIMO support and two Gigabit Ethernet ports, balancing performance and cost-effectiveness for small to medium networks.
Key Features
- Dual-band Wi-Fi 5 performance up to 1267Mbps, delivering 400Mbps on 2.4GHz and 866Mbps on 5GHz
- 2×2 MU-MIMO technology under 802.11ac Wave 2 for efficient multi-user data handling
- Two Gigabit Ethernet ports for wired connectivity and backhaul
- PoE/PoE+ power support for flexible ceiling installation without local power outlets
- Ruijie Cloud management for remote monitoring, status checks, and configuration
- Reyee Mesh technology support to reduce cabling requirements during network expansion
- Layer 3 roaming capabilities for seamless device transitions in larger deployments
Technical Specifications
| Product Type | Indoor ceiling access point. |
| Model | RG-RAP2200(E). |
| Wireless Standard | Wi-Fi 5, 802.11ac Wave 2. |
| Wireless Performance | Up to 1267Mbps combined dual-band wireless performance. |
| 2.4GHz Data Rate | Up to 400Mbps. |
| 5GHz Data Rate | Up to 866Mbps. |
| Radio Design | Dual-radio with 4 spatial streams. |
| MIMO | 2.4GHz 2×2 MIMO and 5GHz 2×2 MIMO. |
| Antennas | 2 built-in omnidirectional antennas for 2.4GHz and 2 built-in omnidirectional antennas for 5GHz. |
| Ethernet Ports | 2 x 10/100/1000BASE-T Gigabit ports. |
| Power Supply | PoE/PoE+ or local DC power adapter. |
| Local Power Input | 12V DC, 1.5A via DC connector. |
| Maximum Power Consumption | 12.95W. |
| Cloud Management | Supports Ruijie Cloud remote monitoring and maintenance. |
| Mesh Support | Supports Reyee Mesh technology for compatible wireless expansion. |
| Roaming | Supports seamless Layer 3 roaming. |
| Maximum Associated Clients | 64 on 2.4GHz; 110 on 5GHz; 110 with both 2.4GHz and 5GHz enabled. |
| Managed Device Capacity | Up to 300 devices can be managed. |
| IPv6 | Supported. |
| Mounting Options | Ceiling or wall mounting. |
| Operating Temperature | 0°C to 40°C. |
| Dimensions | 194 x 194 x 35 mm, excluding mounting bracket. |
| Weight | ≤ 0.45 kg without packaging materials. |
| Colour | White. |
