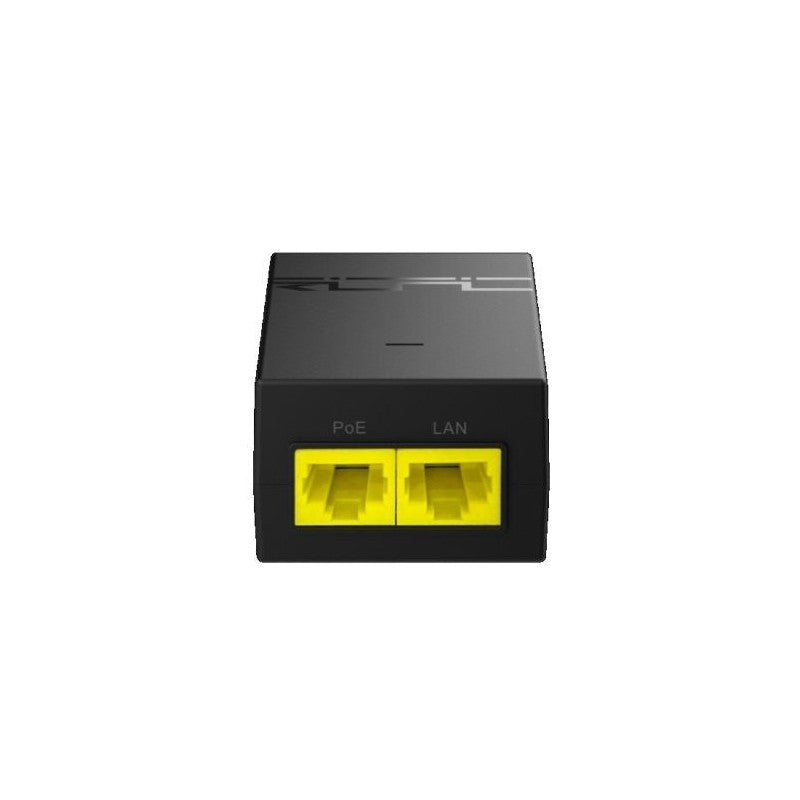

Ruijie Reyee Rg-poe-af15 Gigabit POE Injector With 15.6w Output, 52v Power Supply, Compact Wall-mount Design
SKU: RGPOEAF15
$40.95
The Ruijie Reyee RG-POE-AF15 is a compact Gigabit passive PoE injector engineered to deliver data and power to a single compatible network device via one Ethernet cable. Designed for low-power wireless access points and network equipment, this unit provides 15.6W of power at 52V DC, allowing for seamless integration into existing home, office, or small business installations without the need to replace current switch or router infrastructure.
Key Features
- 1000Base-T Gigabit data support for high-speed network connectivity
- 15.6W passive PoE power output at 52V DC
- Compact wall-mount design suitable for space-constrained environments
- Single Ethernet cable solution for simultaneous data and power delivery
- Compatible with low-power wireless access points and passive PoE devices
- Vendor: Ruijie Reyee
Technical Specifications
| Product Type | 1-port Gigabit passive PoE injector. |
| Model | RG-POE-AF15. |
| Series | Ruijie Reyee passive PoE injector accessory. |
| Network Port | 1000Base-T Gigabit Ethernet connection. |
| PoE Type | Passive PoE. |
| Output Voltage | 52V DC at 0.3A. |
| Output Power | 15.6W. |
| Rated Input Voltage | 100–240V AC at 50/60Hz. |
| Input Current | 0.5A maximum. |
| Inrush Current | Less than 80A at 230V AC. |
| Powering Pin Assignment | 2-pair powering on pins 4,5 positive and pins 7,8 negative. |
| Surge Protection | High surge protection rating for supported installations. |
| Compatible Device Type | Designed for compatible wall AP and passive PoE device deployments. |
| Operating Temperature | -10°C to +45°C. |
| Storage Temperature | -40°C to +70°C. |
| Dimensions | 92 x 46.5 x 29.5 mm. |
