Ruijie Reyee Rg-poe-50-60w-mg 1-port 2.5g Passive POE Injector With 56v Output, 60w Power, High Surge Protection
SKU: RGPOE5060WMG
$77.97

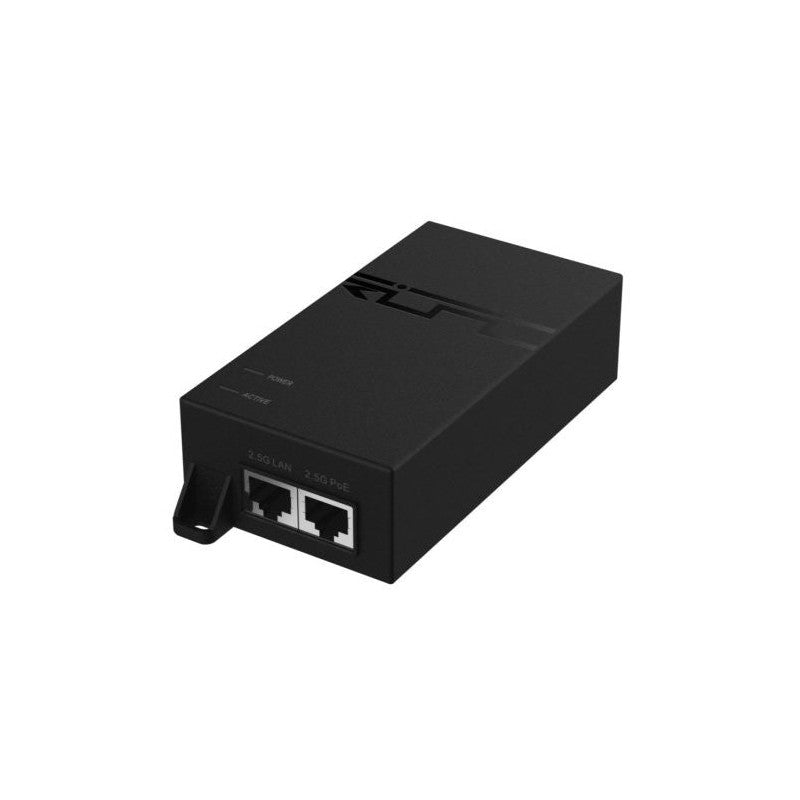

The Ruijie Reyee RG-POE-50-60W-MG is a 1-port passive PoE injector engineered to deliver data and power to high-powered network devices over a single Ethernet connection. Featuring a 2.5G port and 60W output, it is designed for multi-gigabit access points and outdoor deployments where a compatible PoE switch is not available.
Key Features
- 1-port passive PoE injector with 56V output
- 60W power delivery capacity for high-powered devices
- 2500Base-T (2.5G) Ethernet port
- High surge protection for enhanced hardware safety
- Compatible with selected wireless access points and network devices
- Suitable for outdoor AP deployments and network upgrades
- Compact design for flexible installation environments
Technical Specifications
| Product Type | 1-port passive PoE injector. |
| Model | RG-POE-50-60W-MG. |
| Series | Ruijie Reyee passive PoE injector accessory. |
| Port | 1 x 2500Base-T port. |
| PoE Standard | Passive PoE. |
| PoE Output | 56V, 60W passive PoE output. |
| Rated Voltage | 100–240V AC at 50/60Hz. |
| Input Current | Maximum 0.5A. |
| Inrush Current | Less than 80A at 230V AC. |
| Powering Pin Assignment | 4-pair powering for compatible passive PoE devices. |
| Surge Protection | 65V surge protection. |
| Maximum Discharge Current | 500A, 8/20 μs. |
| Operating Temperature | -10°C to +45°C. |
| Storage Temperature | -40°C to +70°C. |
| Dimensions | 137.4 x 62.3 x 32.6 mm. |
| Weight | 225 g. |
| Warranty | 3 years. |
