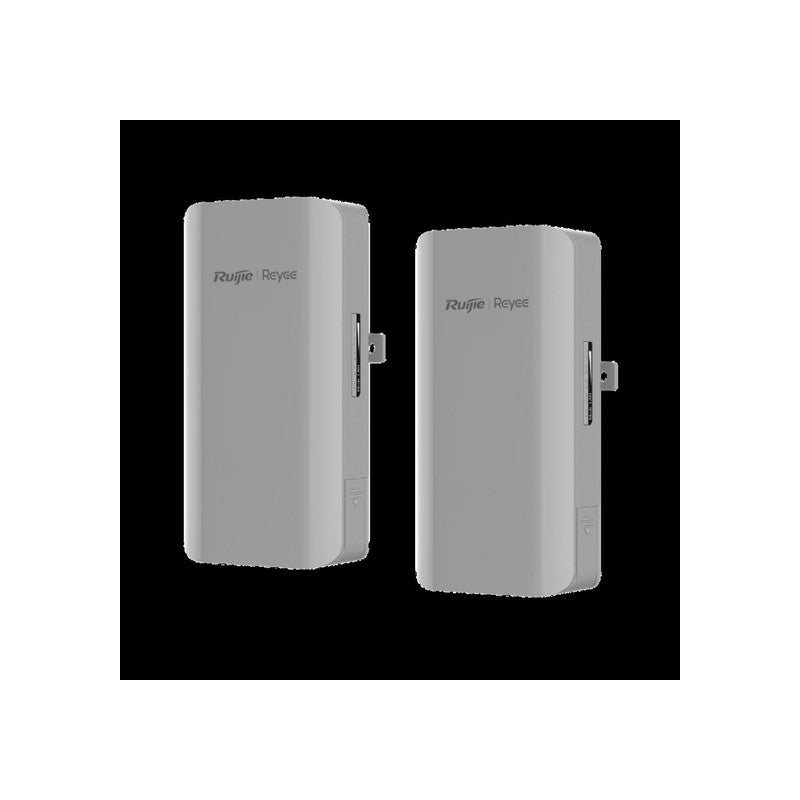

Ruijie Reyee Rg-est310v2 5ghz Wireless Bridge Kit (2-pack, 867mbps, 1km Range, Fast Ethernet)
SKU: RGEST310V2
$245.63
The Ruijie Reyee RG-EST310 V2 5GHz Wireless Bridge Kit is a professional outdoor point-to-point solution designed for reliable long-distance network connectivity where Ethernet cabling is impractical. Operating on the 5GHz band with 802.11ac dual-stream technology, this Ruijie Reyee kit provides wireless throughput up to 867Mbps for stable remote network extensions.
Key Features
- 5GHz frequency band with 802.11ac dual-stream technology for reduced interference
- Wireless throughput up to 867Mbps
- Long-range wireless link supporting up to 1km line-of-sight
- Factory-paired kit including two outdoor wireless bridge units
- Weatherproof outdoor housing with integrated directional antennas
- Passive PoE power support for simplified installation
- Fast Ethernet connectivity suitable for CCTV backhaul and remote network extensions
Technical Specifications
| Product Model | Bridging Performance | RSSI (dBm) | Throughput & Camera Limits | |||
| 3 MP | 4 to 5 MP | 6 to 7 MP | 7 to 8 MP | |||
| RG-EST100-E | 60 Mbps/100 m (328.08 ft.) (HT20) 30 Mbps/500 m (0.31 miles) (HT20) |
–58 dBm/100 m (328.08 ft.) –68 dBm/500 m (0.31 miles) |
10/100 m (328.08 ft.) 5/500 m (0.31 miles) |
6/100 m (328.08 ft.) 3/500 m (0.31 miles) |
3/100 m (328.08 ft.) 1/500 m (0.31 miles) |
3/100 m (328.08 ft.) 1/500 m (0.31 miles) |
| RG-EST310 V2 | 90 Mbps/100 m (328.08 ft.) (HT40) 80 Mbps/500 m (0.31 miles) (HT40) 80 Mbps/1 km (0.62 miles) (HT40) 40 Mbps/2 km (1.24 miles) (HT40) |
–52 dBm/100 m (328.08 ft.) –65 dBm/500 m (0.31 miles) –68 dBm/1 km (0.62 miles) –75 dBm/2 km (1.24 miles) |
16/100 m (328.08 ft.) 16/500 m (0.31 miles) 16/1 km (0.62 miles) 6/2 km (1.24 miles) |
10/100 m (328.08 ft.) 10/500 m (0.31 miles) 10/1 km (0.62 miles) 4/2 km (1.24 miles) |
7/100 m (328.08 ft.) 7/500 m (0.31 miles) 7/1 km (0.62 miles) 3/2 km (1.24 miles) |
5/100 m (328.08 ft.) 5/500 m (0.31 miles) 5/1 km (0.62 miles) 2/2 km (1.24 miles) |
| RG-EST350 V2 | 230 Mbps/1 km (0.62 miles) (HT40) 200 Mbps/3 km (1.86 miles) (HT40) 150 Mbps/5 km (3.11 miles) (HT40) |
–58 dBm/1 km (0.62 miles) –66 dBm/3 km (1.86 miles) –70 dBm/5 km (3.11 miles) |
50/1 km (0.62 miles) 45/3 km (1.86 miles) 20/5 km (3.11 miles) |
30/1 km (0.62 miles) 25/3 km (1.86 miles) 12/5 km (3.11 miles) |
20/1 km (0.62 miles) 13/3 km (1.86 miles) 8/5 km (3.11 miles) |
15/1 km (0.62 miles) 12/3 km (1.86 miles) 6/5 km (3.11 miles) |
| RG-EST330F-P | 90 Mbps/0.5 km (0.31 miles) (HT40) 80 Mbps/1 km (0.62 miles) (HT40) 60 Mbps/2 km (1.24 miles) (HT40) 40 Mbps/3 km (1.86 miles) (HT40) |
-53 dBm/0.5 km (0.31 miles) -59 dBm/1 km (0.62 miles) -65 dBm/2 km (1.24 miles) -70 dBm/3 km (1.86 miles) |
18/0.5 km (0.31 miles) 16/1 km (0.62 miles) 12/2 km (1.24 miles) 8/3 km (1.86 miles) |
12/0.5 km (0.31 miles) 10/1 km (0.62 miles) 8/2 km (1.24 miles) 5/3 km (1.86 miles) |
8/0.5 km (0.31 miles) 7/1 km (0.62 miles) 5/2 km (1.24 miles) 3/3 km (1.86 miles) |
5/0.5 km (0.31 miles) 5/1 km (0.62 miles) 2/2 km (1.24 miles) 1/3 km (1.86 miles) |
