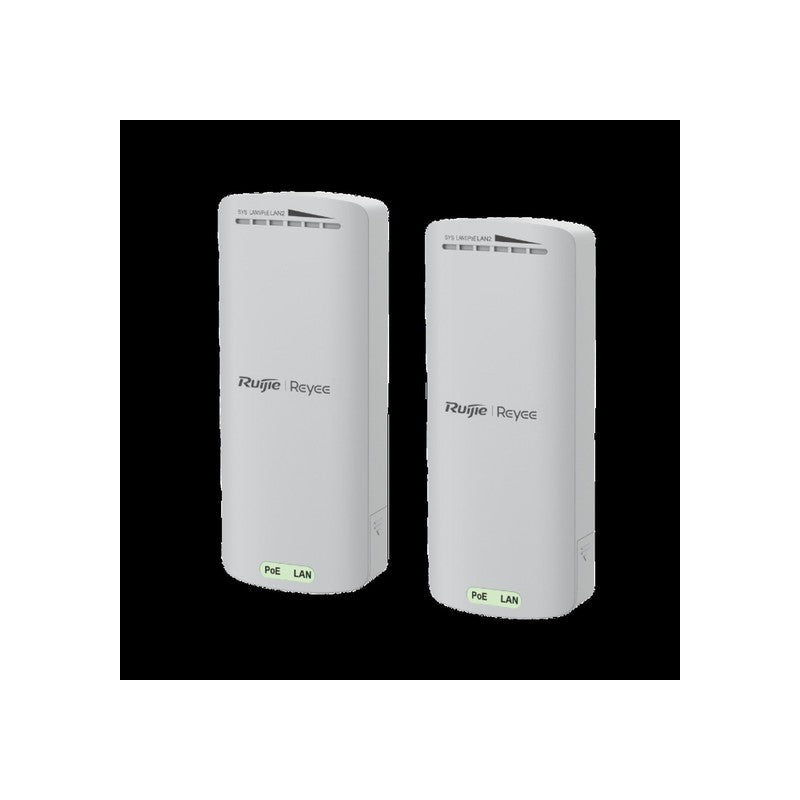

Ruijie Reyee Rg-est100-e 2.4ghz Wireless Bridge Kit (2-pack, 300mbps, 500m Range, 8dbi Antenna)
SKU: RGEST100E
$106.26
The Ruijie Reyee RG-EST100-E 2.4GHz Wireless Bridge Kit provides a reliable point-to-point connection for outdoor network extensions. Designed for CCTV backhaul and remote site connectivity, this 2-pack solution supports up to 300Mbps throughput over distances of 500 meters using 802.11b/g/n technology.
Key Features
- 2.4GHz wireless band with 2×2 MU-MIMO support for up to 300Mbps throughput
- Integrated 8dBi directional antennas for stable transmission up to 500m
- IP55-rated weatherproof housing suitable for harsh outdoor environments
- Factory pre-paired units enable plug-and-play installation without complex configuration
- Includes ±6kV surge and lightning protection for exposed outdoor installations
- Features two 10/100 Mbps LAN ports with passive PoE power support
- Compatible with Ruijie Reyee cloud platform for remote monitoring and management
Technical Specifications
| Specification | Details |
|---|---|
| Model | RG-EST100 |
| Wireless Band | 2.4GHz |
| Wireless Standard | IEEE 802.11 b/g/n |
| Spatial Streams | 2×2 MU-MIMO |
| Maximum Throughput | Approx. 300Mbps |
| Recommended Range | Up to 500m (point-to-point) |
| Antenna Gain | 8dBi Directional |
| Weather Protection | IP55 Outdoor Rated |
| Surge Protection | ±6kV Lightning Protection |
| Ethernet Ports | 2 × 10/100 Mbps LAN Ports |
| Power Method | Passive PoE Supported |
| Operating Temperature | Outdoor-rated wide temperature range |
| Dimensions | Approx. 165 × 69 × 42 mm |
| Weight | Approx. 0.3 kg |
