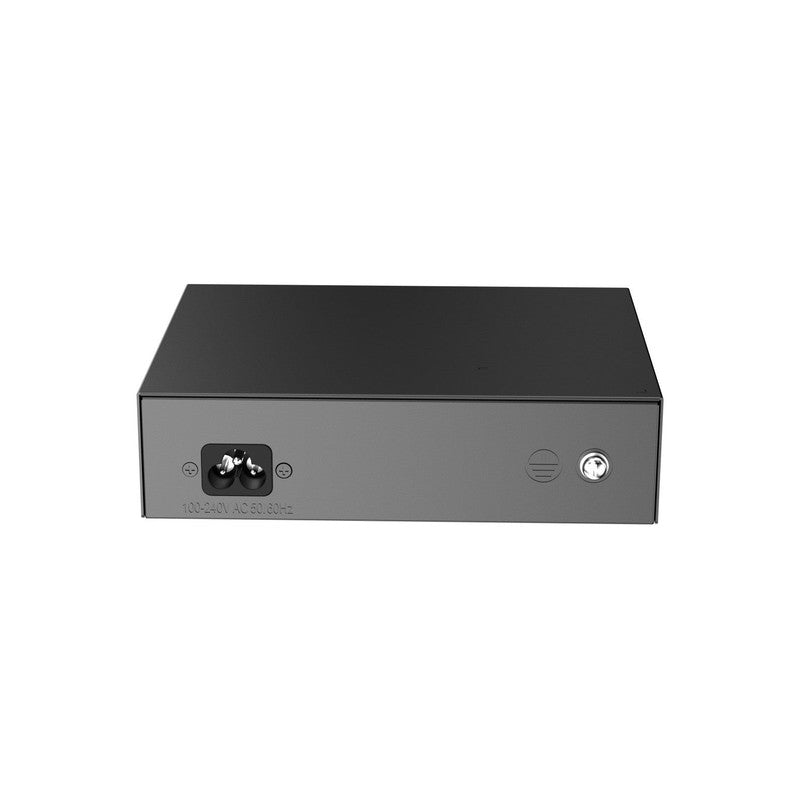

Ruijie Reyee 6-port Unmanaged POE Switch Rg-es106f-p With 4 Poe+ Ports, 54w POE Budget, 250m CCTV Transmission
SKU: RGES106FP
$89.74
The Ruijie Reyee RG-ES106F-P is a 6-port unmanaged PoE switch engineered for compact CCTV, retail, and small office environments. It delivers plug-and-play connectivity with a 54W PoE budget and supports extended 250m CCTV transmission for simplified security and network deployments.
Key Features
- 6-port unmanaged design for straightforward network expansion without complex configuration
- 4 PoE+ ports enabling simultaneous power and data delivery over a single Ethernet cable
- 54W total PoE budget suitable for powering IP cameras, access points, and intercoms
- Supports up to 250m CCTV transmission to extend camera connections beyond standard Ethernet limits
- Unmanaged plug-and-play operation allows for rapid installation in small security networks
- Compact form factor ideal for retail counters, offices, and small business spaces
Technical Specifications
| Model | RG-ES106F-P |
| Brand | Ruijie Reyee |
| Product Type | Unmanaged PoE switch |
| Switch Series | Reyee unmanaged switch |
| Port Count | 6 ports |
| PoE Ports | 4 × PoE+ ports |
| PoE Budget | 54W |
| Transmission Support | Up to 250m CCTV transmission |
| Management | Unmanaged |
| Setup Type | Plug and play |
| Primary Use | Small PoE network expansion for compatible powered devices and CCTV installations |
| Typical Applications | IP cameras, wireless access points, intercoms, small offices, retail stores, compact security systems and simple PoE device groups |
| Installation Type | Desktop, shelf, cabinet or small network area installation with suitable power and cabling |
| Best Use | Small CCTV networks, compact PoE access point deployments, plug-and-play PoE switching and extended CCTV cable runs where supported |
| Deployment Consideration | Confirm device count, PoE budget, individual device wattage, cable length, uplink requirements, transmission mode and whether unmanaged switching is suitable before installation |
