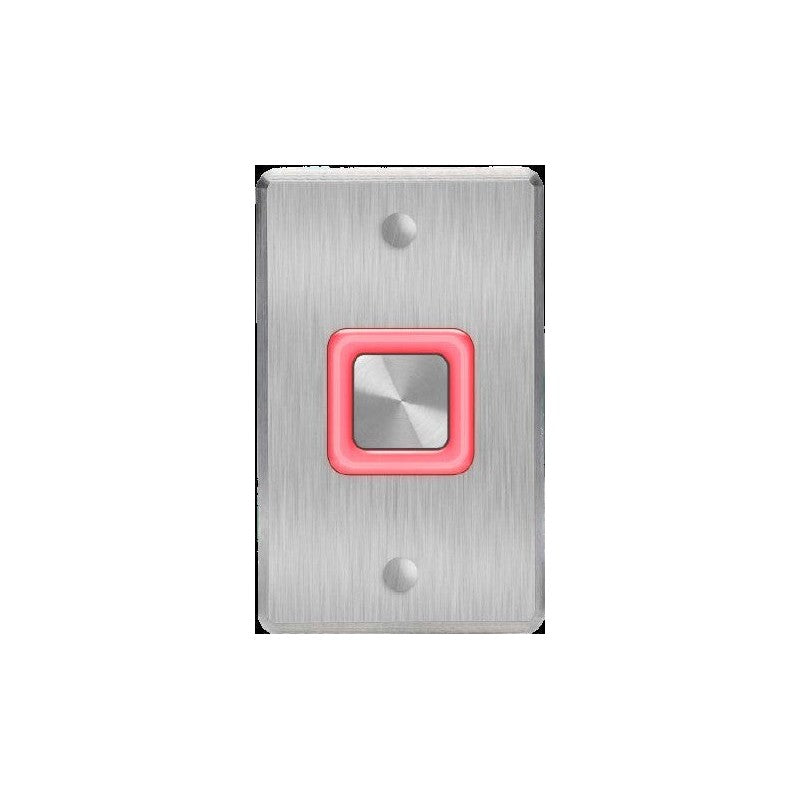

Rosslare Push Button Silver Illuminated Square Button On Curved Edge Standard Stainless Steel Plate With No Text Ip65 Single Pole/double Throw (sp/dt) 12-24vdc Momentary
SKU: ROSEX0700
$105.09
The Rosslare Push Button Silver Illuminated Square Button on Curved Edge Standard Stainless Steel Plate is a momentary access control device designed for secure entry points. This IP65-rated unit features a silver illuminated square button mounted on a curved edge stainless steel plate, engineered for reliable performance in outdoor or high-traffic environments.
Key Features
- Constructed from standard stainless steel with a curved edge design for durability and aesthetic integration
- Features a silver illuminated square button with no text for clear visual indication
- IP65 rating provides protection against dust and water jets, suitable for external installation
- Single Pole/Double Throw (SP/DT) momentary contact configuration for flexible circuit wiring
- Operates on 12-24VDC power supply
- Compact dimensions of 114H x 70W x 32D mm
- Includes 2 mounting holes for secure installation
Technical Specifications
Technical Specifications
| Brand | ROSSLARE |
| Switch Type | PUSH BUTTON |
| Button Color | SILVER |
| Button Type | ILLUMINATED SQUARE BUTTON |
| Plate Type | ON CURVED EDGE |
| Plate Style | STANDARD |
| Plate Material | STAINLESS STEEL PLATE |
| Text Engraved | WITH NO TEXT |
| Ip Rating | IP65 |
| Power | 12-24VDC |
| Switch Action | MOMENTARY |
| Height(mm) | 114mm |
| Width(mm) | 70mm |
| Depth(mm) | 32mm |
| Warranty | 12 Months |
