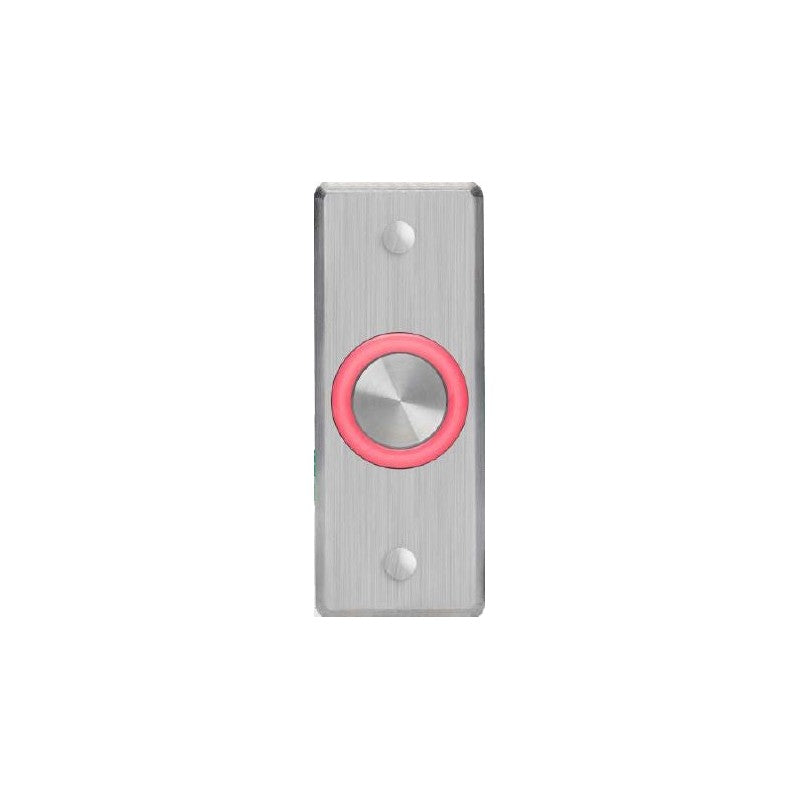

Rosslare Push Button Silver Illuminated Ring On Curved Edge Slim/ Mullion Stainless Steel Plate With No Text Ip65 Double Pole/double Throw (dp/dt) 10-24vdc Momentary
SKU: ROSEX1600
$96.90
The Rosslare Push Button Silver Illuminated Ring on Curved Edge Slim/Mullion Stainless Steel Plate is a momentary access control device designed for 10-24VDC systems. This IP65-rated unit features a double pole/double throw (DP/DT) configuration and is constructed from stainless steel with a silver illuminated ring on a curved edge slim/mullion plate.
Key Features
- Double Pole/Double Throw (DP/DT) momentary push button
- Operating voltage of 10-24VDC
- IP65 ingress protection rating for outdoor or wet area installation
- Stainless steel construction with a silver illuminated ring
- Curved edge slim/mullion plate design with no text
- Dimensions of 114H x 44W x 32D (mm)
- Two-hole mounting configuration
Technical Specifications
Technical Specifications
| Brand | ROSSLARE |
| Switch Type | PUSH BUTTON |
| Button Color | SILVER |
| Button Type | ILLUMINATED RING |
| Plate Type | ON CURVED EDGE |
| Plate Style | SLIM/ MULLION |
| Plate Material | STAINLESS STEEL PLATE |
| Text Engraved | WITH NO TEXT |
| Ip Rating | IP65 |
| Power | 10-24VDC |
| Switch Action | MOMENTARY |
| Height(mm) | 114mm |
| Width(mm) | 44mm |
| Depth(mm) | 32mm |
| Warranty | 12 Months |
