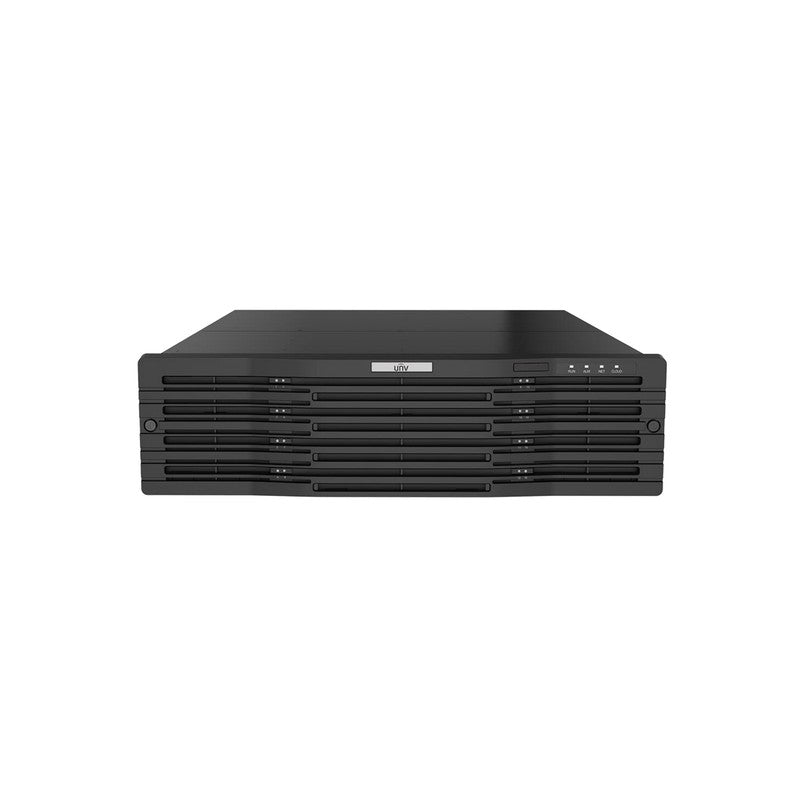

Uniview Prime 128ch NVR Upto 16mp 640mbps Input 16xsata HDD Port Up To 16tb Each 240vac
SKU: NVR516128ER
$5,968.10
The Uniview Prime 128ch NVR is a high-capacity network video recorder engineered for large-scale surveillance deployments. It supports up to 16MP resolution with 640Mbps input bandwidth and features 16 SATA hard drive bays, each supporting up to 16TB, to handle extensive data storage requirements.
Key Features
- 128-channel network video recorder supporting up to 16MP resolution
- 640Mbps total input bandwidth with 2-channel 32MP decoding capability
- 16 SATA HDD ports with support for up to 16TB per drive and RAID 0-6 configurations
- Dual NIC network interfaces for enhanced data throughput and redundancy
- Video output via 2x HDMI and 2x VGA ports for flexible monitor connectivity
- 16 alarm inputs and 10 alarm outputs for integrated security system control
- 2x front and 2x rear USB ports for local playback and configuration
- Power supply rated for 240VAC operation
Technical Specifications
Technical Specifications
| Brand | UNIVIEW |
| Warranty | 36 Months |
| Series | PRIME |
| Channels | 128CH |
| Colour | BLACK |
| Ai | NON AI |
| Nvr/Xvr | NVR |
| Resolution | UPTO 16MP |
| Compression | H.264/4+/5+ |
| Network Port | 2xNIC |
| Bandwidth | 640Mbps |
| Decoding | 2CH@32MP |
| Material | METAL |
| Hdd Port | 16 HDD |
| Max Hdd Size | UP TO 16TB EACH |
| Esata Port | ESATA |
| Raid | RAID0-60 |
| Display | 2HDMI/2VGA |
| Audio In | 1 IN |
| Audio Out | 2 OUT |
| Alarm In | 16 IN |
| Alarm Out | 10 OUT |
| Usb Port | USBx4 |
| Voltage | 240VAC |
| Serial Interface | RS232/RS485 |
