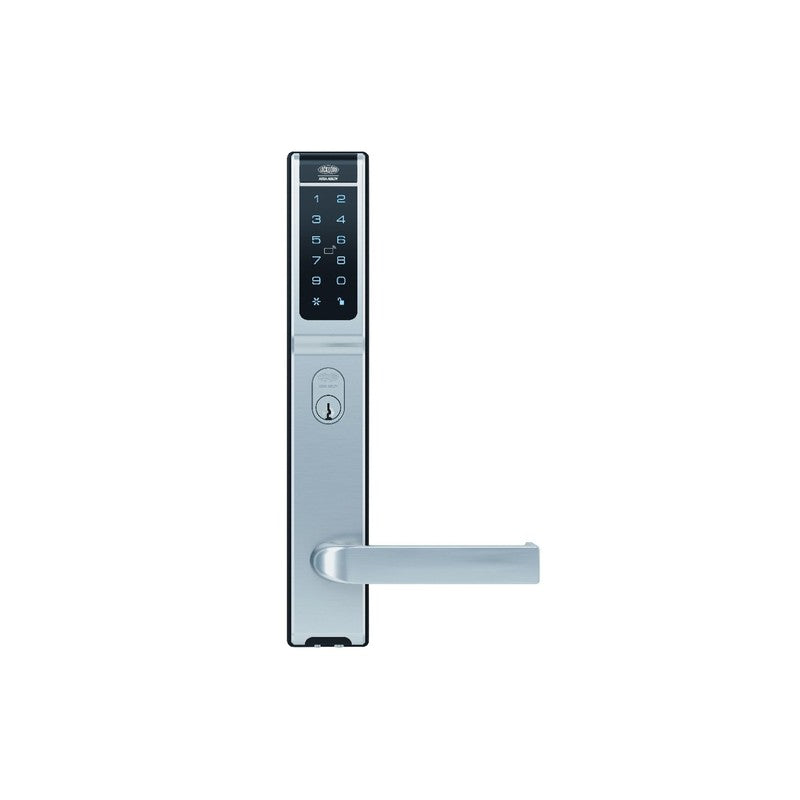

Lockwood Ctx5782sc/5782 Cortex Card+pin Electronic Lockset 35-48mm Satin Chrome
SKU: ASACTX5782SC5782
$2,414.46
The Lockwood CTX5782SC/5782 Cortex Card+Pin Electronic Lockset is a secure access control solution designed for door backsets ranging from 35 to 48mm. Finished in satin chrome, this unit integrates card and PIN authentication to manage entry for residential or commercial applications.
Key Features
- Compatible with door backsets of 35-48mm
- Features a satin chrome finish
- Supports Card and PIN entry methods
- Model reference CTX5782SC/5782
- Part of the Lockwood Cortex series
- Electronic lockset mechanism
Technical Specifications
Technical Specifications
| Brand | ASSA ABLOY |
| Warranty | 36 Months |
| Series | CORTEX SERIES |
| Slimline/Standard | STANDARD |
| Elec/Mech | ELECTRIC |
| Device Type | LOSS PREVENTION LOCK WITH CCTV CAMERA & SOUNDER WITH DELAYED EGRESS |
| Monitored | MONITORED |
| Lock Status Sensor (Lss) | LOCK STATUS SENSOR |
| Door Status Sensor Dss) | DOOR STATUS SENSOR |
| Led Indicator | LED INDICATOR |
| Key Override | KEY OVERRIDE |
| Holding Force | 580KG HOLDING FORCE |
| Pto/Ptl | FAIL SAFE (PTL) |
| Mounting | SURFACE MOUNT |
| Fire Rating | NONE |
| Power | MULTI VOLTAGE , 12VDC , 24VDC |
