Lef Series Multi Wire Intercom 5 Call Button Audio Master Station White Commercial Mechanical Button Plastic Lock Output(dry Contact) 12vdc
SKU: APHLEF5
$325.05

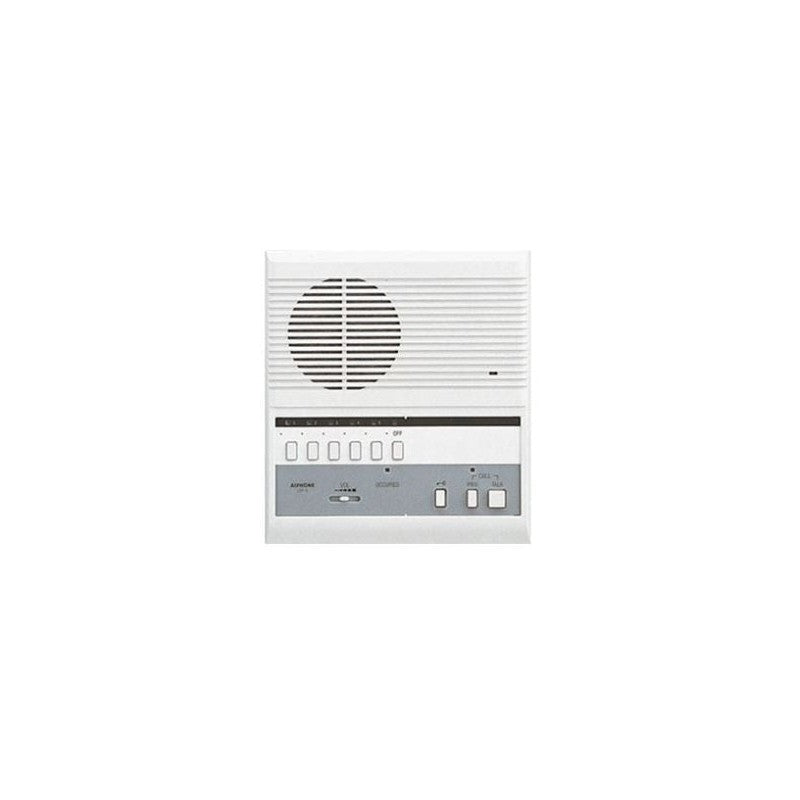

The Elite Ingrate Systems Lef Series Multi Wire Intercom 5 Call Button Audio Master Station White Commercial Mechanical Button Plastic Lock Output(dry Contact) 12vdc is a surface-mounted audio control unit designed for commercial multi-wire intercom networks. This white plastic master station features five mechanical call buttons and provides a dry contact lock output for integration with existing access control systems.
Key Features
- Five mechanical call buttons for direct audio communication
- Dry contact lock output for external door lock control
- Operates on a 12VDC power supply
- White plastic housing with surface mount installation
- Compatible with LEF-3, LEF-10, LEF-10S, LE-D, LE-DA, LE-A, LE-AN, PS-1225UL, PS-1225S, PS-1225, and PS-1215DIN units
- Dimensions: 206H x 190W x 55D mm
- Includes wall bracket for secure mounting
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Series | LEF SERIES |
| Technology | MULTI WIRE |
| Device Type | MASTER STATION |
| Colour | WHITE |
| Solution | COMMERCIAL |
| Display Size | None |
| Display/Button Type | MECHANICAL BUTTON |
| Material | PLASTIC |
| Mounting | SURFACE MOUNT |
| Output | LOCK OUTPUT(DRY CONTACT) |
| Mounting Box | COMES WITH WALL BRACKET |
| Power | 12VDC |
