Jv Series 2-wire Intercom Vertical 1 Button Audio/video Door Station Black Residential/commercial Mechanical Button 1.3mp Metal Ip54 Ik08 Lock & Auxiliary Output Alarm Input Power By Monitor Bus
SKU: APHJVDV
$430.35

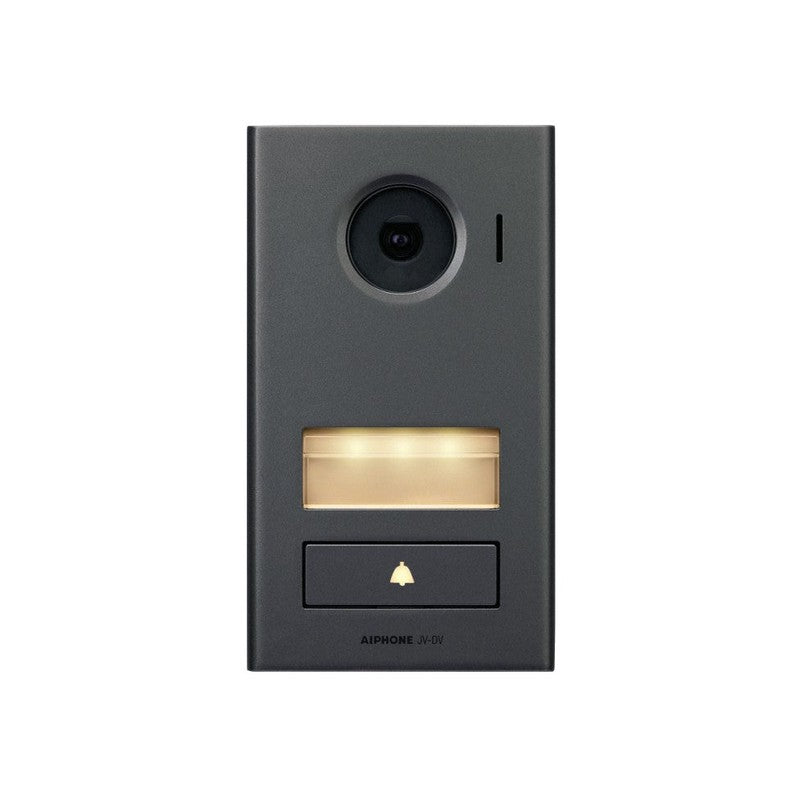

The Elite Ingrate Systems JV Series 2-Wire Intercom Vertical 1 Button Audio/Video Door Station is a compact, metal surface-mount unit designed for both residential and commercial security applications. This black-finished device integrates a 1.3MP camera with a mechanical button, utilizing a 2-wire bus system for power and data transmission from the monitor.
Key Features
- 1.3MP audio/video camera for clear visual identification
- 2-wire bus system for simplified power and data connection
- IP54 ingress protection rating for dust and water resistance
- IK08 impact resistance rating for enhanced physical durability
- Single mechanical button for reliable, tactile operation
- Includes lock and auxiliary output, plus alarm input capabilities
- Compact vertical dimensions of 170H x 81W x 24D mm
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Series | JV SERIES |
| Technology | 2-WIRE |
| Device Type | 1 BUTTON AUDIO/VIDEO DOOR STATION |
| Colour | BLACK |
| Solution | COMMERCIAL , RESIDENTIAL |
| Display Size | None |
| Display/Button Type | MECHANICAL BUTTON |
| Camera Resolution | 1.3MP |
| Material | METAL |
| Mounting | SURFACE MOUNT |
| Ip Rating | IP54 |
| Ik Rating | IK08 |
| Output | LOCK & AUXILIARY OUTPUT |
| Input | ALARM INPUT |
| Power | POWER BY MONITOR BUS |
