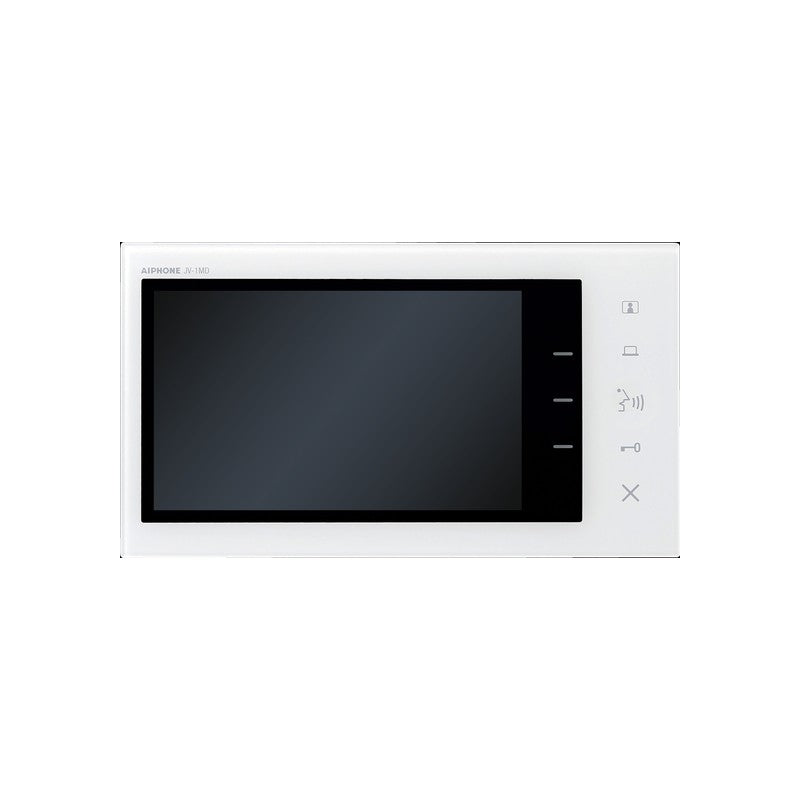

Jv Series 2-wire Intercom Monitor White Residential/commercial 7 Inch Display Touch Button Plastic Lock & Auxiliary Output Sub Door Station 24vdc
SKU: APHJV1MD
$494.70
The Elite Ingrate Systems JV Series 2-Wire Intercom Monitor is a white residential and commercial unit featuring a 7-inch display and touch button interface. Designed for surface mounting, this sub door station integrates lock and auxiliary outputs to manage access control within a 24VDC system.
Key Features
- 7-inch display with touch button operation
- 2-wire intercom architecture
- Includes lock and auxiliary output capabilities
- White plastic surface mount housing
- Supplied with a wall bracket for installation
- Operates on a 24VDC power supply
- Dimensions: 130.18H x 230.18W x 4.76D (mm)
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Series | JV SERIES |
| Technology | 2-WIRE |
| Device Type | MONITOR |
| Colour | WHITE |
| Solution | COMMERCIAL , RESIDENTIAL |
| Display Size | 7 INCH DISPLAY |
| Display/Button Type | TOUCH BUTTON |
| Material | PLASTIC |
| Mounting | SURFACE MOUNT |
| Output | LOCK & AUXILIARY OUTPUT |
| Features 1 | SUB DOOR STATION |
| Mounting Box | COMES WITH WALL BRACKET |
| Power | 24VDC |
