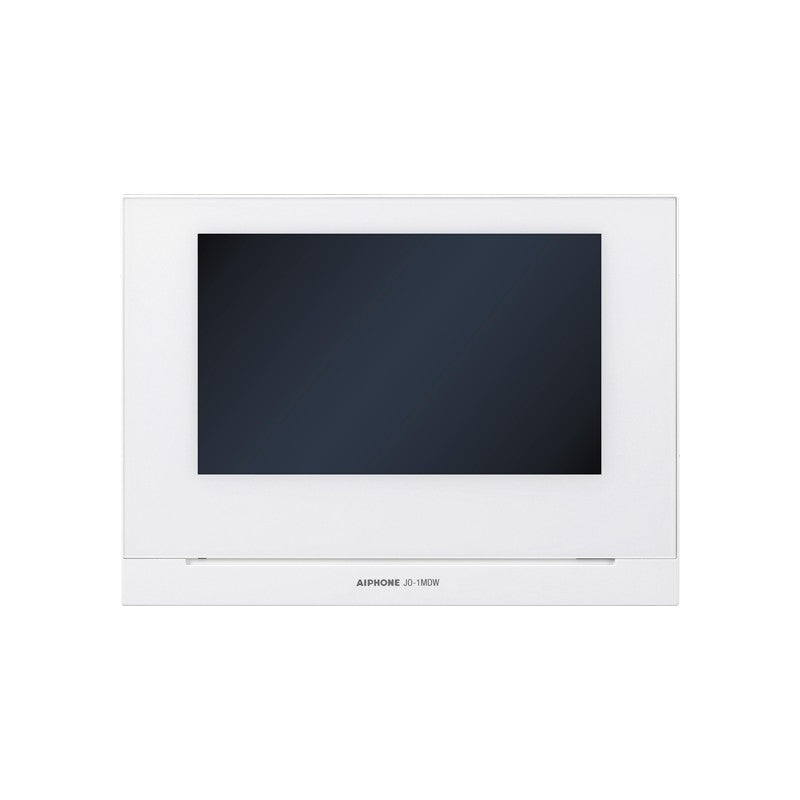

Jo Series 2/4-wire Intercom Monitor With Wifi White Residential 7 Inch Display Capacitive Touchscreen Plastic Lock Output(dry Contact) Sub Door Station Up To 32gb Micro SD Card 18vdc
SKU: APHJO1MDW
$639.78
The Elite Ingrate Systems Jo Series 2/4-wire Intercom Monitor is a residential-grade video door station designed for secure, remote access management. Featuring a 7-inch capacitive touchscreen and integrated Wi-Fi connectivity, this white, plastic surface-mount unit provides a reliable interface for monitoring and controlling entry points.
Key Features
- 7-inch capacitive touchscreen display for intuitive user interaction
- 2/4-wire intercom architecture supporting sub-door station integration
- Integrated Wi-Fi connectivity for networked access and monitoring
- Dry contact lock output for direct integration with electric strike or magnetic locks
- Supports up to 32GB Micro SD card for local video and event recording
- Operates on an 18VDC power supply
- Surface-mount design with included wall bracket for flexible installation
- Compact physical dimensions of 155H x 210W x 27D (mm)
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Series | JO SERIES |
| Technology | 2/4-WIRE |
| Device Type | MONITOR |
| Colour | WHITE |
| Solution | RESIDENTIAL |
| Display Size | 7 INCH DISPLAY |
| Display/Button Type | CAPACITIVE TOUCHSCREEN |
| Material | PLASTIC |
| Mounting | SURFACE MOUNT |
| Output | LOCK OUTPUT(DRY CONTACT) |
| Features 1 | SUB DOOR STATION |
| Mounting Box | COMES WITH WALL BRACKET |
| Max Sd Card Supported | UP TO 32GB MICRO SD CARD |
| Power | 18VDC |
