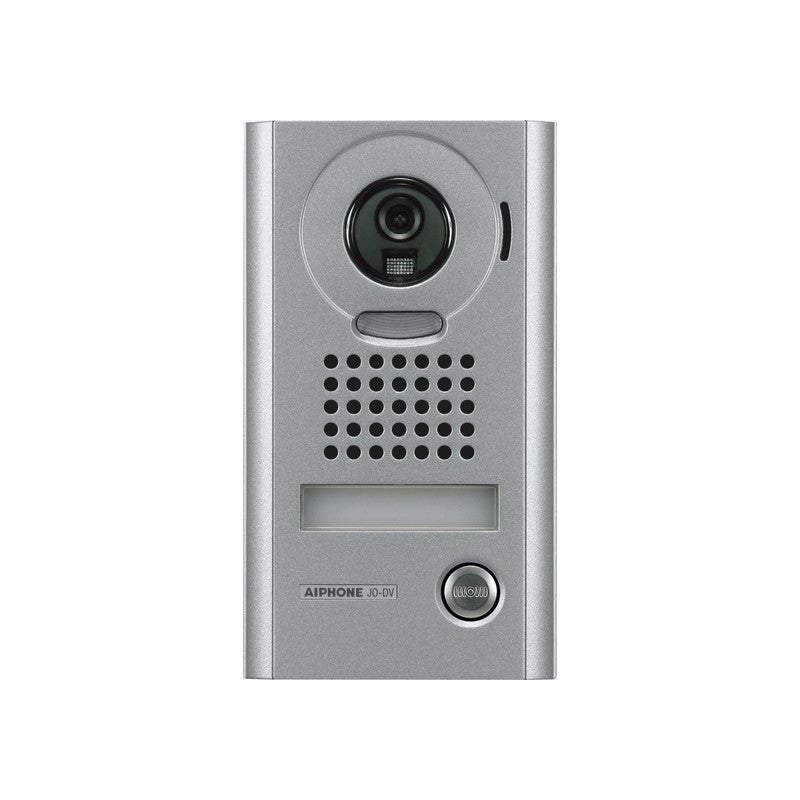

Jo Series 2/4-wire Intercom 1 Button Audio/video Door Station Silver Residential Mechanical Button Metal Ip54 Ik08 Sub Door Station Power By Monitor Bus
SKU: APHJODV
$429.18
The Elite Ingrate Systems JO Series 2/4-Wire Intercom 1 Button Audio/Video Door Station is a silver, surface-mounted unit designed for residential security applications. This sub door station utilizes a mechanical button and is powered via the monitor bus, ensuring reliable operation within a multi-wire intercom network.
Key Features
- 2/4-wire audio/video intercom system compatible with monitor bus power
- Single mechanical button design for direct access control
- IP54 ingress protection rating for resistance to dust and water splashes
- IK08 impact protection rating for enhanced physical durability
- Constructed with a metal surface mount housing in a silver finish
- Includes a wall bracket for secure installation
- Compact dimensions of 179H x 98W x 26.8D mm
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Series | JO SERIES |
| Technology | 2/4-WIRE |
| Device Type | 1 BUTTON AUDIO/VIDEO DOOR STATION |
| Colour | SILVER |
| Solution | RESIDENTIAL |
| Display Size | None |
| Display/Button Type | MECHANICAL BUTTON |
| Material | METAL |
| Mounting | SURFACE MOUNT |
| Ip Rating | IP54 |
| Ik Rating | IK08 |
| Features 1 | SUB DOOR STATION |
| Mounting Box | COMES WITH WALL BRACKET |
| Power | POWER BY MONITOR BUS |
