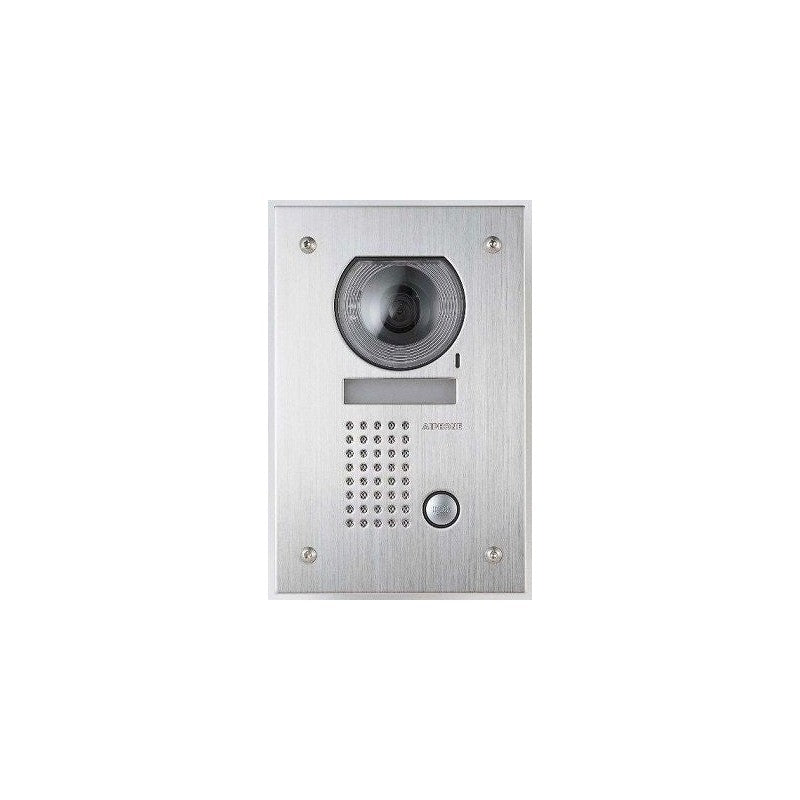

Jf Series 2/4-wire Intercom 1 Button Audio/video Door Station Silver Residential Mechanical Button 525tvl Stainless Steel Ip43 Lock Output(dry Contact) Power By Monitor Bus
SKU: APHJFDVF
$457.26
The Elite Ingrate Systems JF Series 2/4-Wire Intercom 1 Button Audio/Video Door Station is a silver residential unit designed for mechanical operation. This device features a 525TVL camera and is constructed from stainless steel with an IP43 rating for outdoor durability.
Key Features
- 2/4-wire audio/video intercom system with a single mechanical button
- 525TVL camera resolution for clear visual identification
- Stainless steel construction with a silver finish
- IP43 ingress protection rating for weather resistance
- Lock output provided via dry contact
- Power supplied through the monitor bus
- Recessed mount design with a surface mount box included
- Dimensions of 209H x 135W x 50.5D mm
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Series | JF SERIES |
| Technology | 2/4-WIRE |
| Device Type | 1 BUTTON AUDIO/VIDEO DOOR STATION |
| Colour | SILVER |
| Solution | RESIDENTIAL |
| Display Size | None |
| Display/Button Type | MECHANICAL BUTTON |
| Camera Resolution | 525TVL |
| Material | STAINLESS STEEL |
| Mounting | RECESSED MOUNT |
| Ip Rating | IP43 |
| Output | LOCK OUTPUT(DRY CONTACT) |
| Mounting Box | COMES WITH SURFACE MOUNT BOX |
| Power | POWER BY MONITOR BUS |
