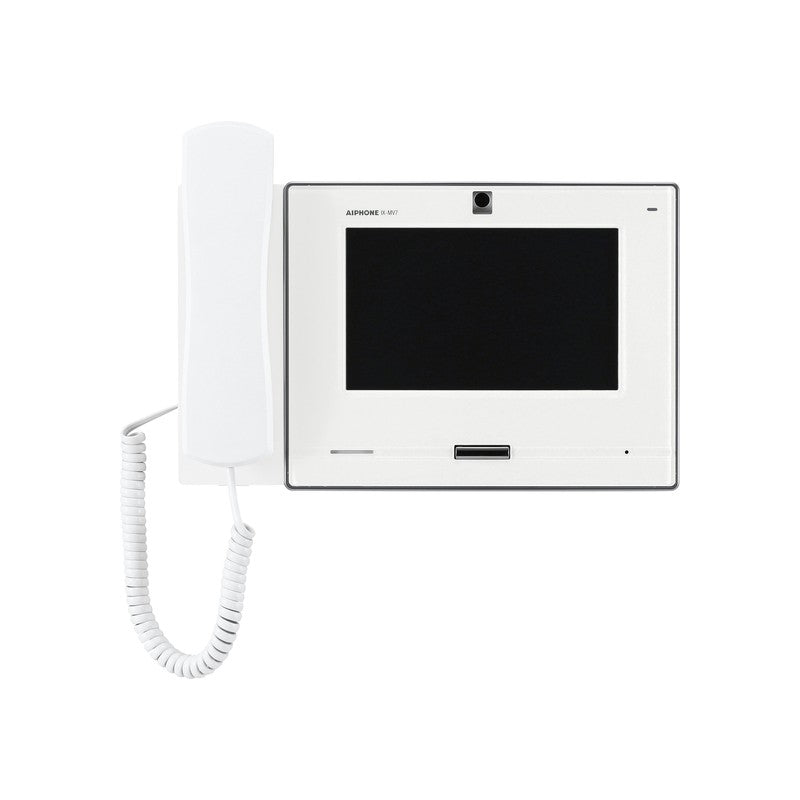

Ix Series IP Intercom Monitor With Handset White Commercial 7 Inch Display Touchscreen Plastic H.264 Lock Output(dry Contact) Alarm Input Sub Door Station Up To 128gb Micro SD Card 48v POE Switch
SKU: APHIXMV7HW
$1,300.00
The Elite Ingrate Systems Ix Series IP Intercom Monitor With Handset White Commercial is a 7-inch touchscreen device designed for secure, network-based entry management. This wall-mounted unit integrates H.264 video compression with a physical handset, providing a robust interface for commercial access control systems.
Key Features
- 7-inch touchscreen display with a white plastic surface for clear visual communication
- Integrated handset for reliable audio interaction during intercom sessions
- H.264 video compression standard for efficient network bandwidth usage
- Lock output via dry contact and dedicated alarm input for system integration
- Supports up to 128GB Micro SD card for local video and event recording
- Operates on 48V PoE switch for simplified power and data cabling
- Includes wall bracket for secure surface mounting
- Compact dimensions of 205H x 279.5W x 55.6D mm
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Series | IX SERIES |
| Technology | IP |
| Device Type | MONITOR |
| Colour | WHITE |
| Solution | COMMERCIAL |
| Display Size | 7 INCH DISPLAY |
| Display/Button Type | TOUCHSCREEN |
| Material | PLASTIC |
| Mounting | SURFACE MOUNT |
| Ip System Compression | H.264 |
| Output | LOCK OUTPUT(DRY CONTACT) |
| Input | ALARM INPUT |
| Features 1 | SUB DOOR STATION |
| Mounting Box | COMES WITH WALL BRACKET |
| Max Sd Card Supported | UP TO 128GB MICRO SD CARD |
| Power | POE(48V) |
