Ix Series IP Intercom 2 Button Audio/video Door Station Silver Commercial Mechanical Button 1.23mp Stainless Steel Ip65 Ik08 H.264 Lock Output(dry Contact) Alarm Input Sub Door Station Up To 32gb Micro SD Card 48v POE Switch
SKU: APHIX2DVF
$2,175.99

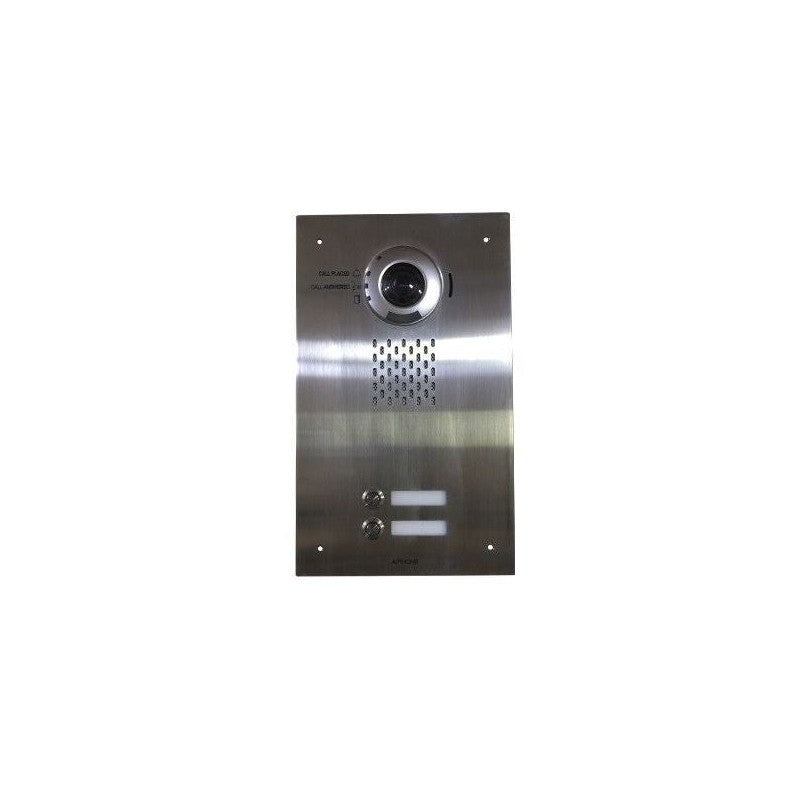

The Elite Ingrate Systems Ix Series IP Intercom 2 Button Audio/video Door Station Silver Commercial Mechanical Button 1.23mp Stainless Steel Ip65 Ik08 H.264 Lock Output(dry Contact) Alarm Input Sub Door Station Up To 32gb Micro SD Card 48v POE Switch is a commercial-grade access control unit designed for secure entry management. Constructed from stainless steel, this device supports both surface and recessed mounting configurations to suit various architectural requirements.
Key Features
- 1.23MP camera resolution with H.264 video compression for clear audio and video communication
- Durable stainless steel housing rated IP65 for dust and water resistance and IK08 for impact protection
- Two commercial mechanical buttons for visitor interaction and access requests
- Lock output via dry contact and dedicated alarm input for integration with security systems
- Supports up to 32GB Micro SD card for local event and video recording
- Powered via 48V PoE switch for simplified single-cable installation
- Includes flush mount box for recessed installation; dimensions 297H x 178W x 60D mm
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Series | IX SERIES |
| Technology | IP |
| Device Type | 2 BUTTON AUDIO/VIDEO DOOR STATION |
| Colour | SILVER |
| Solution | COMMERCIAL |
| Display Size | None |
| Display/Button Type | MECHANICAL BUTTON |
| Camera Resolution | 1.23MP |
| Material | STAINLESS STEEL |
| Mounting | RECESSED MOUNT , SURFACE MOUNT |
| Ip Rating | IP65 |
| Ik Rating | IK08 |
| Ip System Compression | H.264 |
| Output | LOCK OUTPUT(DRY CONTACT) |
| Input | ALARM INPUT |
| Features 1 | SUB DOOR STATION |
| Mounting Box | COMES WITH FLUSH MOUNT BOX |
| Max Sd Card Supported | UP TO 32GB MICRO SD CARD |
| Power | POE(48V) |
