Ix Series IP Intercom 1 Button Emergency Audio Video Door Station Silver Commercial Mechanical Button 1.23mp Stainless Steel Ip65 Ik08 H.264 Lock Output(dry Contact) Alarm Input Sub Door Station Up To 32gb Micro SD Card 24vdc/48v POE Switch
SKU: APHIXDVFRA
$1,346.46

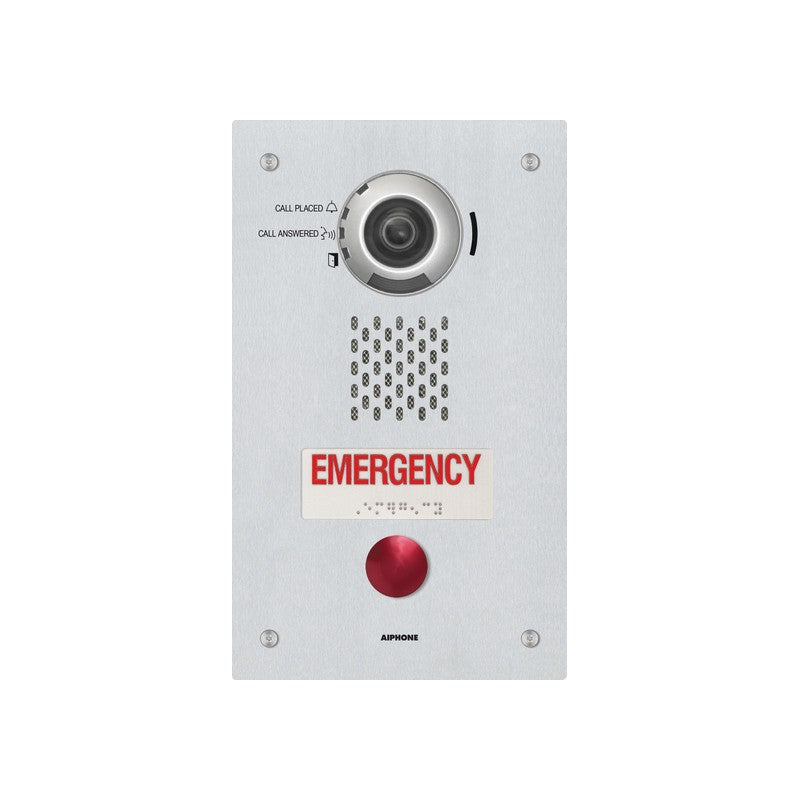

The Ix Series IP Intercom 1 Button Emergency Audio Video Door Station from Elite Ingrate Systems is a commercial-grade access control unit featuring a 1.23MP camera and H.264 video compression. Constructed from stainless steel with an IP65 and IK08 rating, this device supports both surface and recessed mounting configurations for versatile installation in secure environments.
Key Features
- 1.23MP resolution with H.264 video compression for clear audio and video communication
- Stainless steel housing with IP65 ingress protection and IK08 impact resistance
- Single commercial mechanical button with integrated emergency function
- Supports up to 32GB Micro SD card for local video and audio recording
- Power options include 24VDC, 48V, or Power over Ethernet (PoE) switch
- Includes dry contact lock output and alarm input for integration with security systems
- Flush mount box included for recessed installation; dimensions 297H x 178W x 63D (mm)
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Series | IX SERIES |
| Technology | IP |
| Device Type | 1 BUTTON EMERGENCY AUDIO VIDEO DOOR STATION |
| Colour | SILVER |
| Solution | COMMERCIAL |
| Display Size | None |
| Display/Button Type | MECHANICAL BUTTON |
| Camera Resolution | 1.23MP |
| Material | STAINLESS STEEL |
| Mounting | RECESSED MOUNT , SURFACE MOUNT |
| Ip Rating | IP65 |
| Ik Rating | IK08 |
| Ip System Compression | H.264 |
| Output | LOCK OUTPUT(DRY CONTACT) |
| Input | ALARM INPUT |
| Features 1 | SUB DOOR STATION |
| Mounting Box | COMES WITH FLUSH MOUNT BOX |
| Max Sd Card Supported | UP TO 32GB MICRO SD CARD |
| Power | POE(48V) , 24VDC |
