Ix Series IP Intercom 1 Button Audio/video Door Station Silver Residential/commercial Mechanical Button 720p Wdr Metal Ip54 Ik07 H.264 Lock Output(powered) Alarm Input Sub Door Station Up To 32gb Micro SD Card 48v POE Switch
SKU: APHIXDVM
$1,298.49

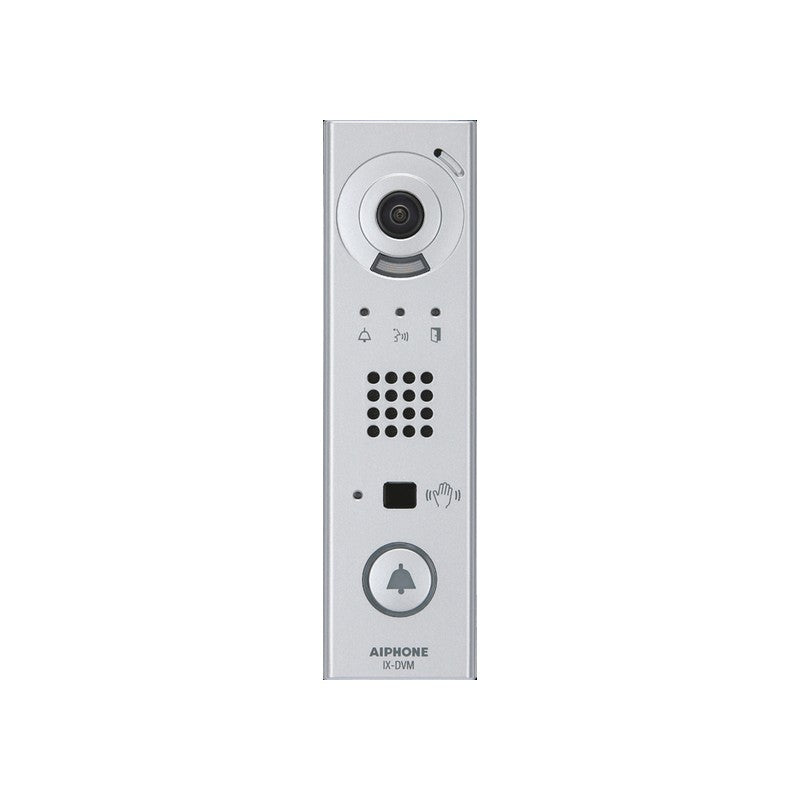

The Elite Ingrate Systems Ix Series IP Intercom 1 Button Audio/Video Door Station is a silver, metal surface-mount unit designed for both residential and commercial applications. This device features a 720p WDR camera with H.264 compression, providing clear visual monitoring through a single mechanical button interface.
Key Features
- 720p WDR camera with H.264 video compression
- IP54 ingress protection and IK07 mechanical impact resistance
- Powered lock output and dedicated alarm input
- Supports up to 32GB Micro SD card for local storage
- Powered via 48V PoE switch
- Includes wall bracket for surface mounting
- Dimensions: 175H x 48W x 34D (mm)
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Series | IX SERIES |
| Technology | IP |
| Device Type | 1 BUTTON AUDIO/VIDEO DOOR STATION |
| Colour | SILVER |
| Solution | COMMERCIAL , RESIDENTIAL |
| Display Size | None |
| Display/Button Type | MECHANICAL BUTTON |
| Camera Resolution | 720P |
| Wdr | WDR |
| Material | METAL |
| Mounting | SURFACE MOUNT |
| Ip Rating | IP54 |
| Ik Rating | IK07 |
| Ip System Compression | H.264 |
| Output | LOCK OUTPUT(POWERED) |
| Input | ALARM INPUT |
| Features 1 | SUB DOOR STATION |
| Mounting Box | COMES WITH WALL BRACKET |
| Max Sd Card Supported | UP TO 32GB MICRO SD CARD |
| Power | POE(48V) |
