Ix Series IP Intercom 1 Button Audio/video Door Station Silver Commercial Mechanical Button 1.23mp Stainless Steel Ip65 Ik08 H.264 Lock Output(dry Contact) Alarm Input Sub Door Station Up To 32gb Micro SD Card 24vdc/48v POE Switch
SKU: APHIXDVF
$1,289.13

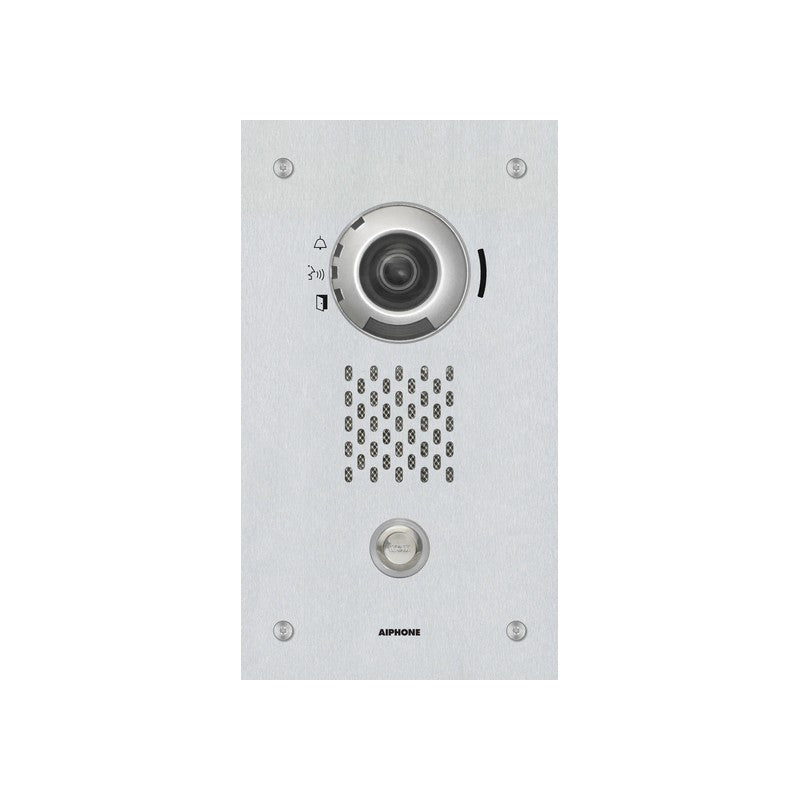

The Ix Series IP Intercom 1 Button Audio/Video Door Station Silver Commercial Mechanical Button 1.23mp Stainless Steel Ip65 Ik08 H.264 Lock Output(dry Contact) Alarm Input Sub Door Station Up To 32gb Micro SD Card 24vdc/48v POE Switch is a robust access control terminal engineered for commercial environments. This unit features a 1.23MP camera with H.264 compression and is constructed from stainless steel to meet IP65 and IK08 impact resistance standards.
Key Features
- 1.23MP audio/video camera with H.264 compression
- IP65 ingress protection and IK08 impact resistance rating
- Stainless steel construction suitable for surface or recessed mounting
- Single commercial mechanical button for call initiation
- Dry contact lock output and alarm input connections
- Supports up to 32GB Micro SD card for local recording
- Power options include 24VDC, 48V, or PoE switch
- Dimensions: 265.5H x 149.5W x 60D (mm)
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Series | IX SERIES |
| Technology | IP |
| Device Type | 1 BUTTON AUDIO/VIDEO DOOR STATION |
| Colour | SILVER |
| Solution | COMMERCIAL |
| Display Size | None |
| Display/Button Type | MECHANICAL BUTTON |
| Camera Resolution | 1.23MP |
| Material | STAINLESS STEEL |
| Mounting | RECESSED MOUNT , SURFACE MOUNT |
| Ip Rating | IP65 |
| Ik Rating | IK08 |
| Ip System Compression | H.264 |
| Output | LOCK OUTPUT(DRY CONTACT) |
| Input | ALARM INPUT |
| Features 1 | SUB DOOR STATION |
| Mounting Box | COMES WITH FLUSH MOUNT BOX |
| Max Sd Card Supported | UP TO 32GB MICRO SD CARD |
| Power | POE(48V) , 24VDC |
