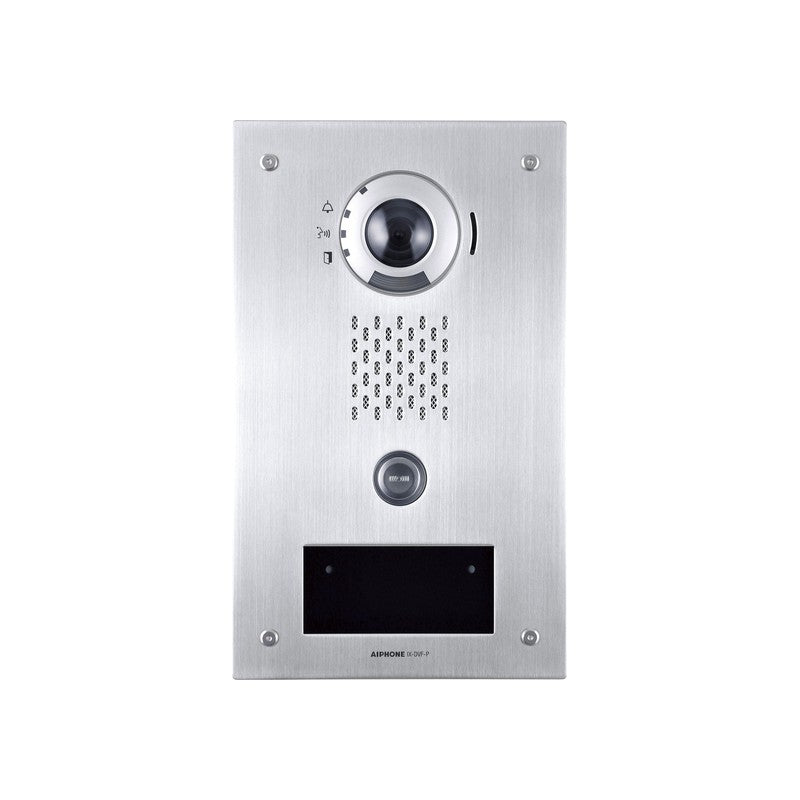

Ix Series IP Intercom 1 Button Audio/video Door Station Silver Commercial Mechanical Button 1.23mp Stainless Steel Ip65 Ik07 H.264 Lock Output(dry Contact) Alarm Input With Hid Multiclass Reader Up To 32gb Micro SD Card 24vdc/48v POE Switch
SKU: APHIXDVFP
$1,314.87
The Elite Ingrate Systems Ix Series IP Intercom 1 Button Audio/Video Door Station is a commercial-grade access control unit designed for secure perimeter management. Constructed from stainless steel, this device integrates high-definition video surveillance with mechanical entry controls for robust, long-term outdoor deployment.
Key Features
- 1.23MP camera resolution with H.264 video compression for efficient network bandwidth usage
- IP65 ingress protection and IK07 impact resistance for durable outdoor surface or recessed mounting
- Integrated HID Multiclass reader supporting up to 32GB Micro SD card for local event logging
- Single commercial mechanical button with dry contact lock output and dedicated alarm input
- Flexible power options supporting 24VDC, 48V, or Power over Ethernet (PoE) via switch
- Compact stainless steel housing measuring 297H x 178W x 60D mm, supplied with a flush mount box
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Series | IX SERIES |
| Technology | IP |
| Device Type | 1 BUTTON AUDIO/VIDEO DOOR STATION |
| Colour | SILVER |
| Solution | COMMERCIAL |
| Display Size | None |
| Display/Button Type | MECHANICAL BUTTON |
| Camera Resolution | 1.23MP |
| Material | STAINLESS STEEL |
| Mounting | RECESSED MOUNT , SURFACE MOUNT |
| Ip Rating | IP65 |
| Ik Rating | IK07 |
| Ip System Compression | H.264 |
| Output | LOCK OUTPUT(DRY CONTACT) |
| Input | ALARM INPUT |
| Features 1 | WITH HID MULTICLASS READER |
| Mounting Box | COMES WITH FLUSH MOUNT BOX |
| Max Sd Card Supported | UP TO 32GB MICRO SD CARD |
| Power | POE(48V) , 24VDC |
